Clover 5 Assembly

Contents

  1. Wiring Diagram
  2. Frame Assembly
  3. Motor Installation
  4. ESC Installation
  5. Aluminum Standoffs Installation
  6. Flight Controller Installation
  7. Raspberry Pi Installation
  8. Installing Guards, Legs, and LED Strip

Fastener Sizes

Fasteners of various sizes are used during assembly. Installing screws or standoffs of the wrong size may result in damage to the quadcopter.

Cell 1

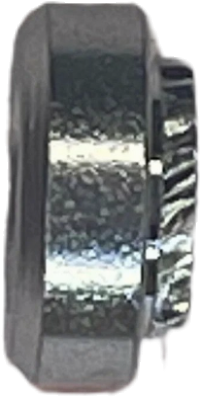

Press Nut M3
Cell 2

Nylon Nut M3
Cell 3

Nylon Standoff M2.5
Cell 4

Nylon Nut M2.5
Cell 5

Nylon Nut M2
Cell 6

Screw M3x40
Cell 7

Screw M3x12
Cell 8

Screw M3x8
Cell 9

Screw M3x6
Cell 10

Screw M3x4
Cell 11

Aluminum Standoff M3x40
Cell 12

Damper Standoff M3
Cell 13

Screw M3x10
Cell 14

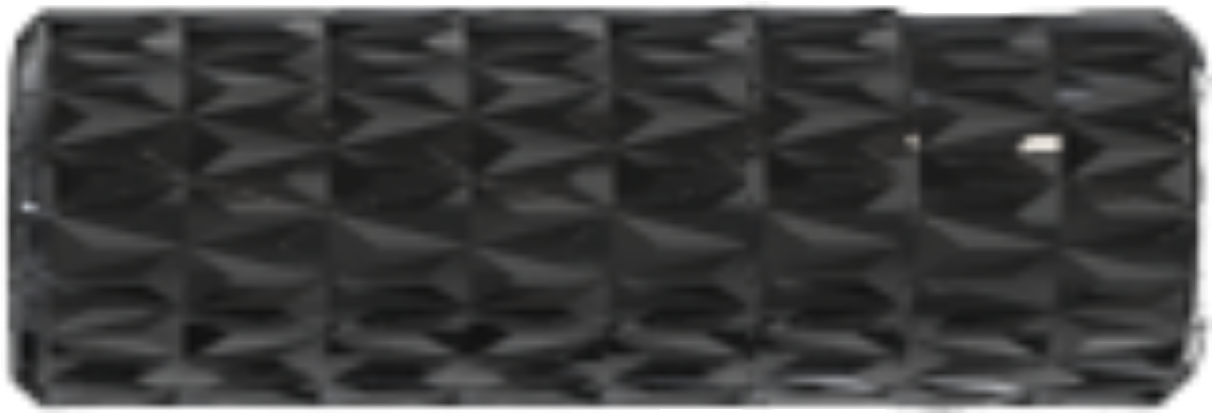

Aluminum Standoff M3x10
Cell 15

Aluminum Standoff M3x30
Cell 16

Screw M2x6
Cell 17

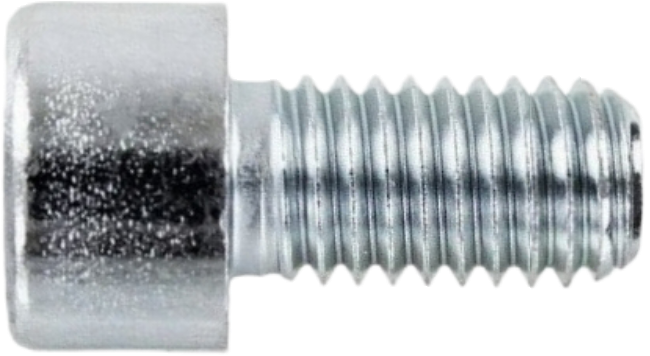

Screw M2.5x4
Cell 18

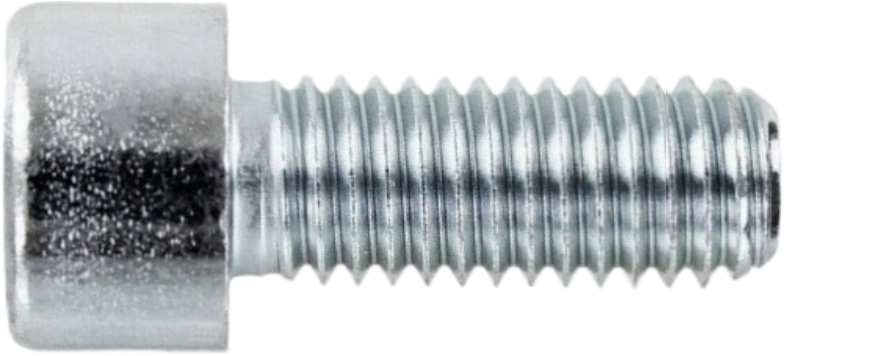

Screw M2.5x6
Cell 19

Self-tapping Screw M1.4x4
Cell 20

Screw M2x3
Cell 21

Nylon Standoff M3x30
Cell 22

Nylon Standoff M3x20
Cell 23

Nylon Standoff M3x40
Cell 24

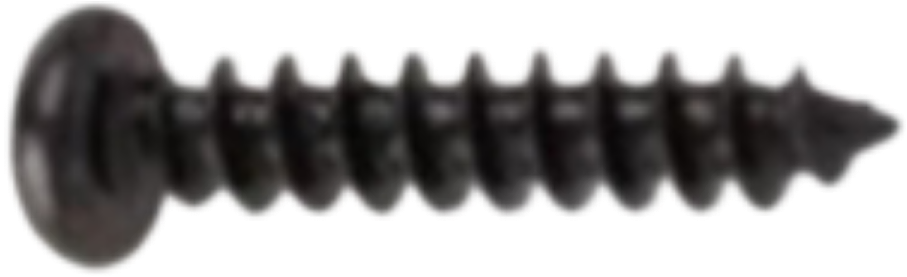

Self-tapping Screw M1.4x10
Cell 25

TPU Foot

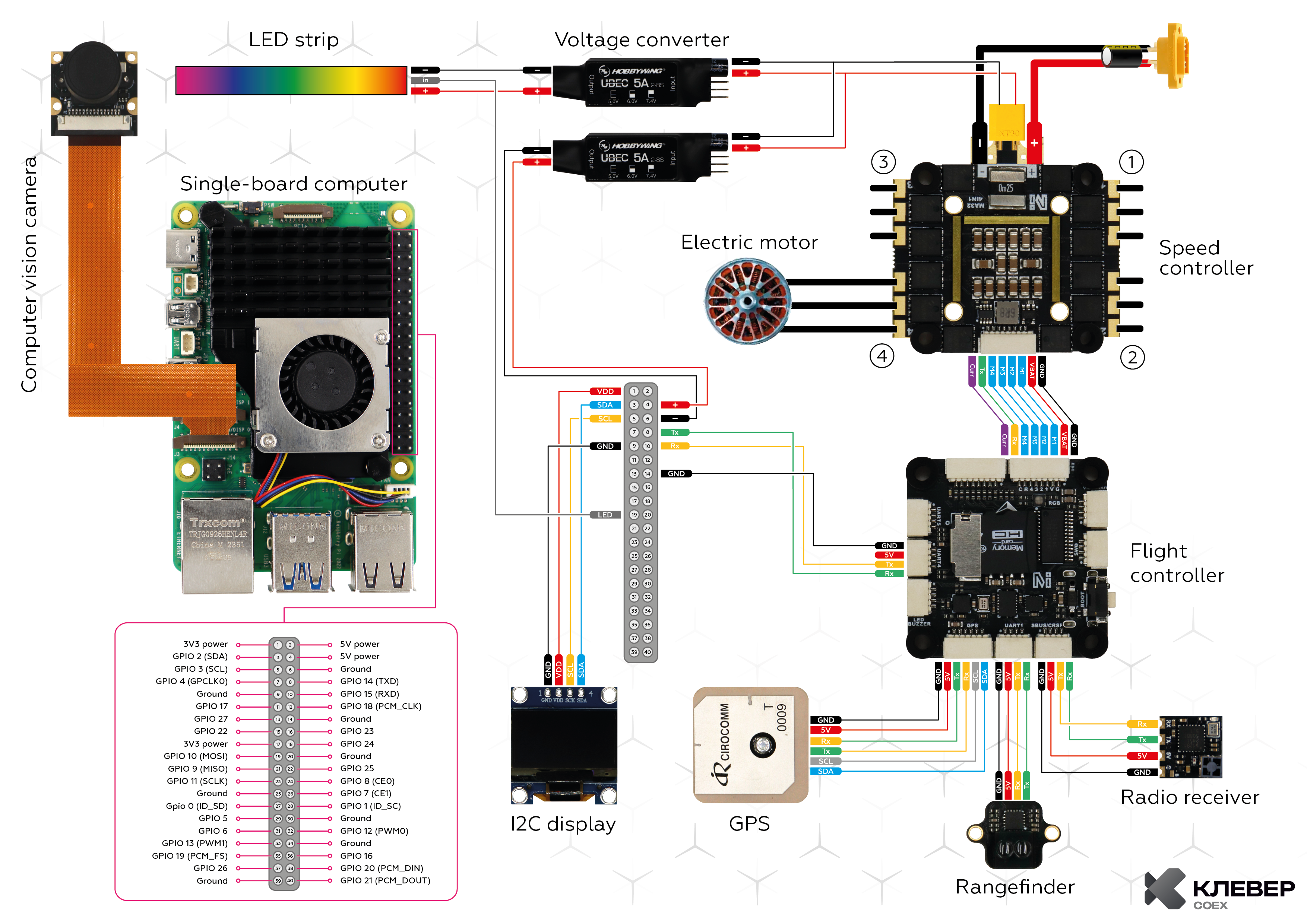

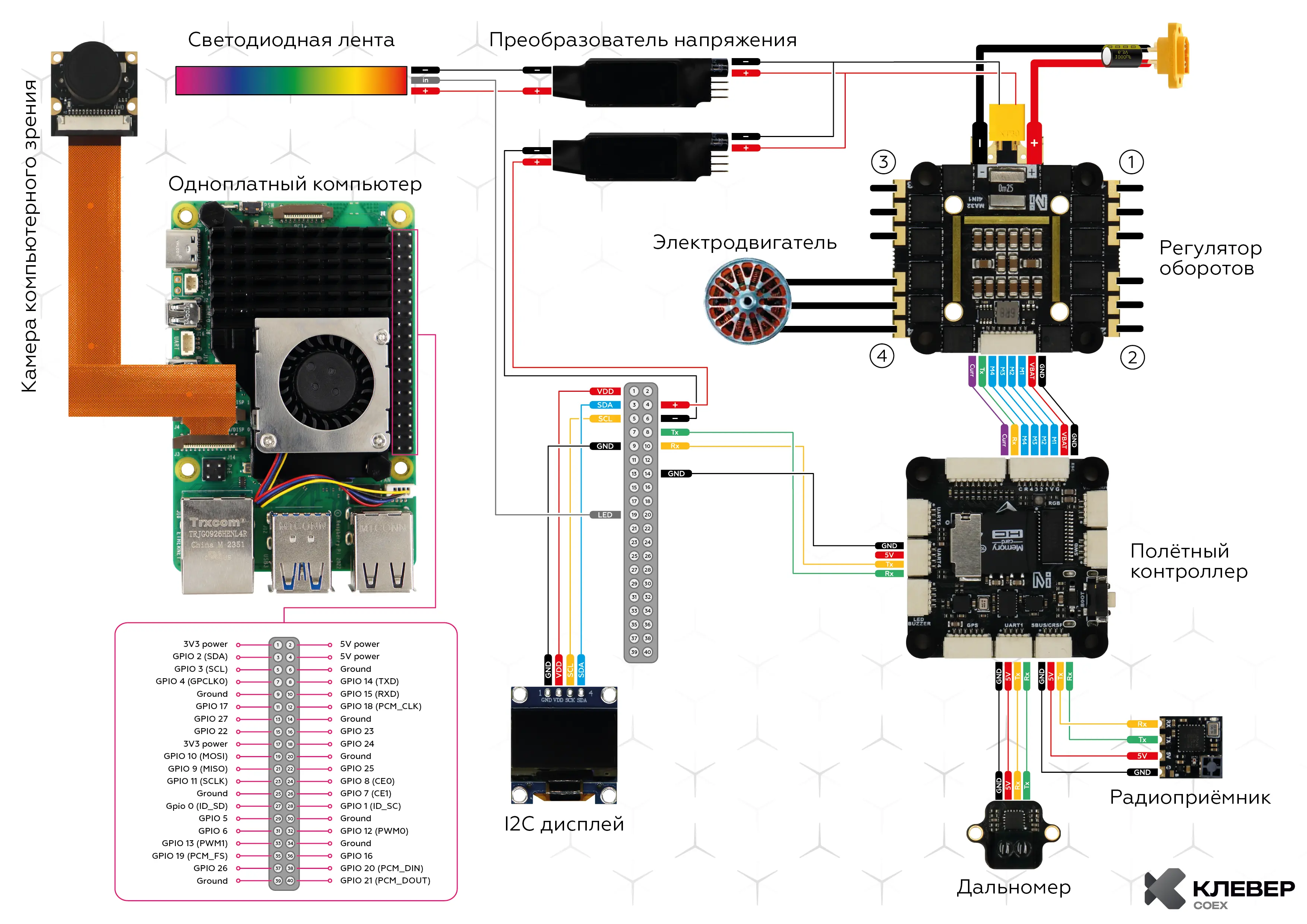

Wiring Diagram

Frame Assembly

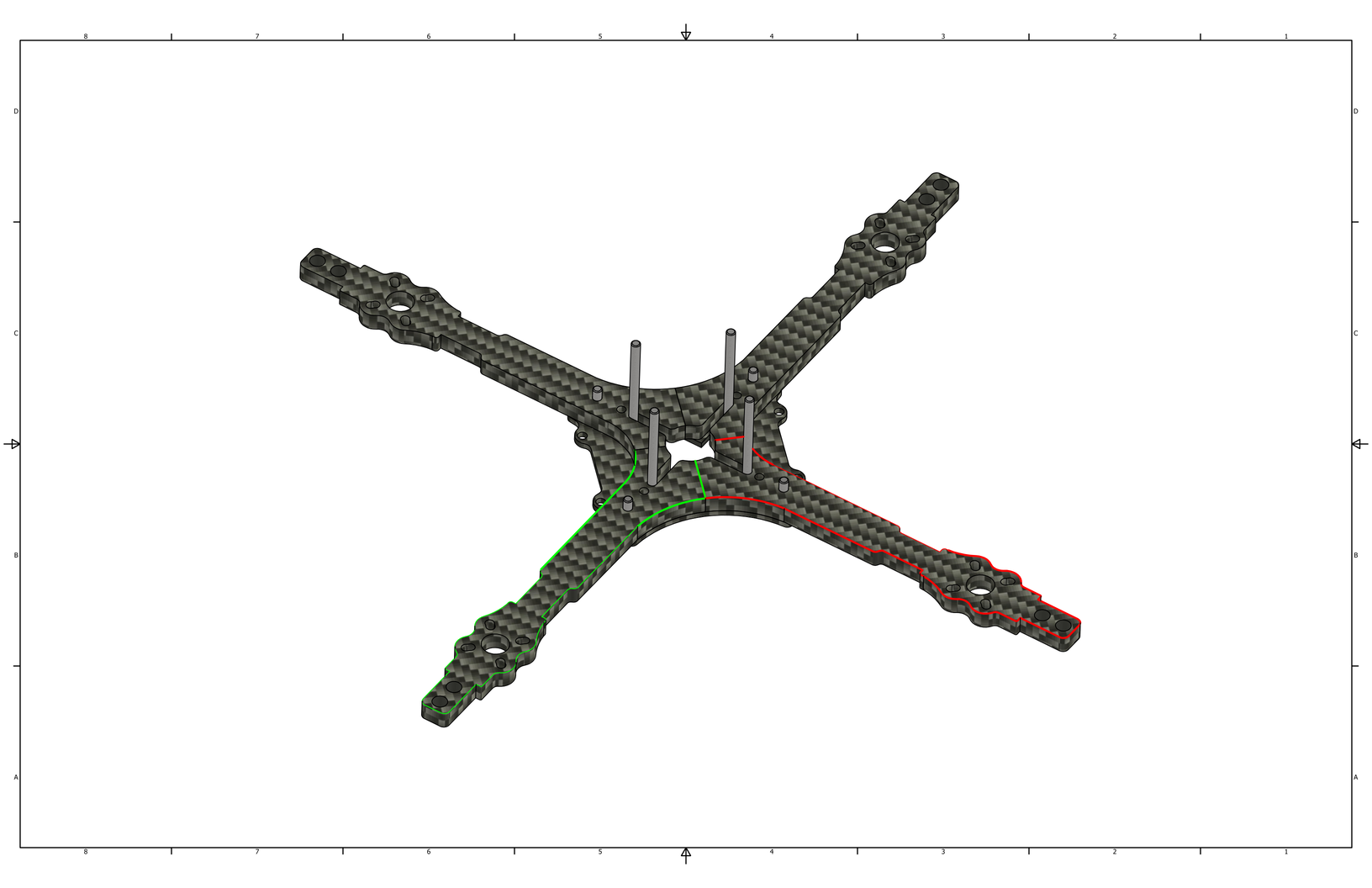

  1. Align the 4 arms between the middle and bottom plates.

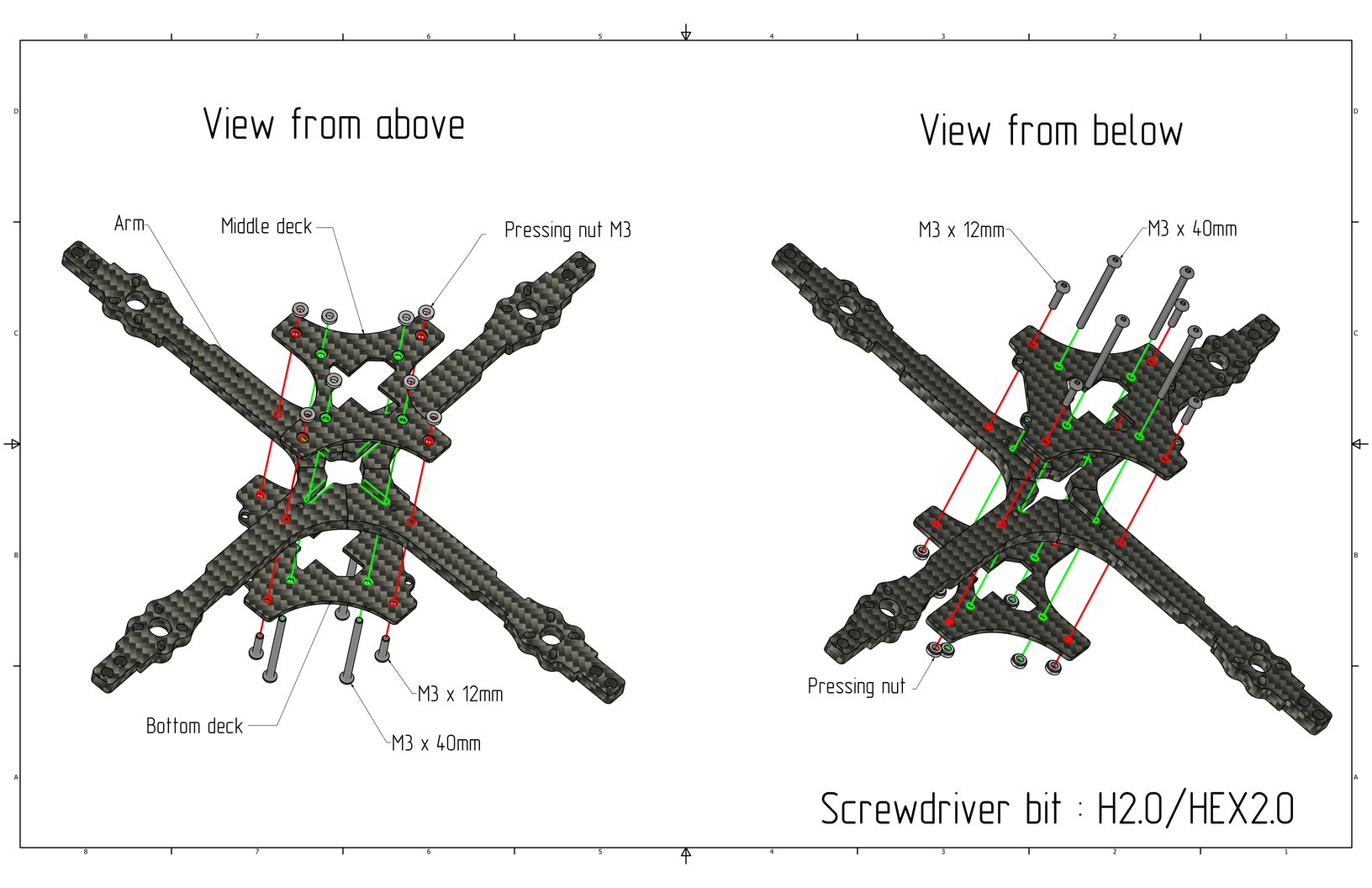

  2. Install M3x12 screws (Cell 7) and M3x40 screws (Cell 6) from the bottom plate side: M3x12 (Cell 7) in the outer arm holes, M3x40 (Cell 6) in the central holes of the bottom plate.

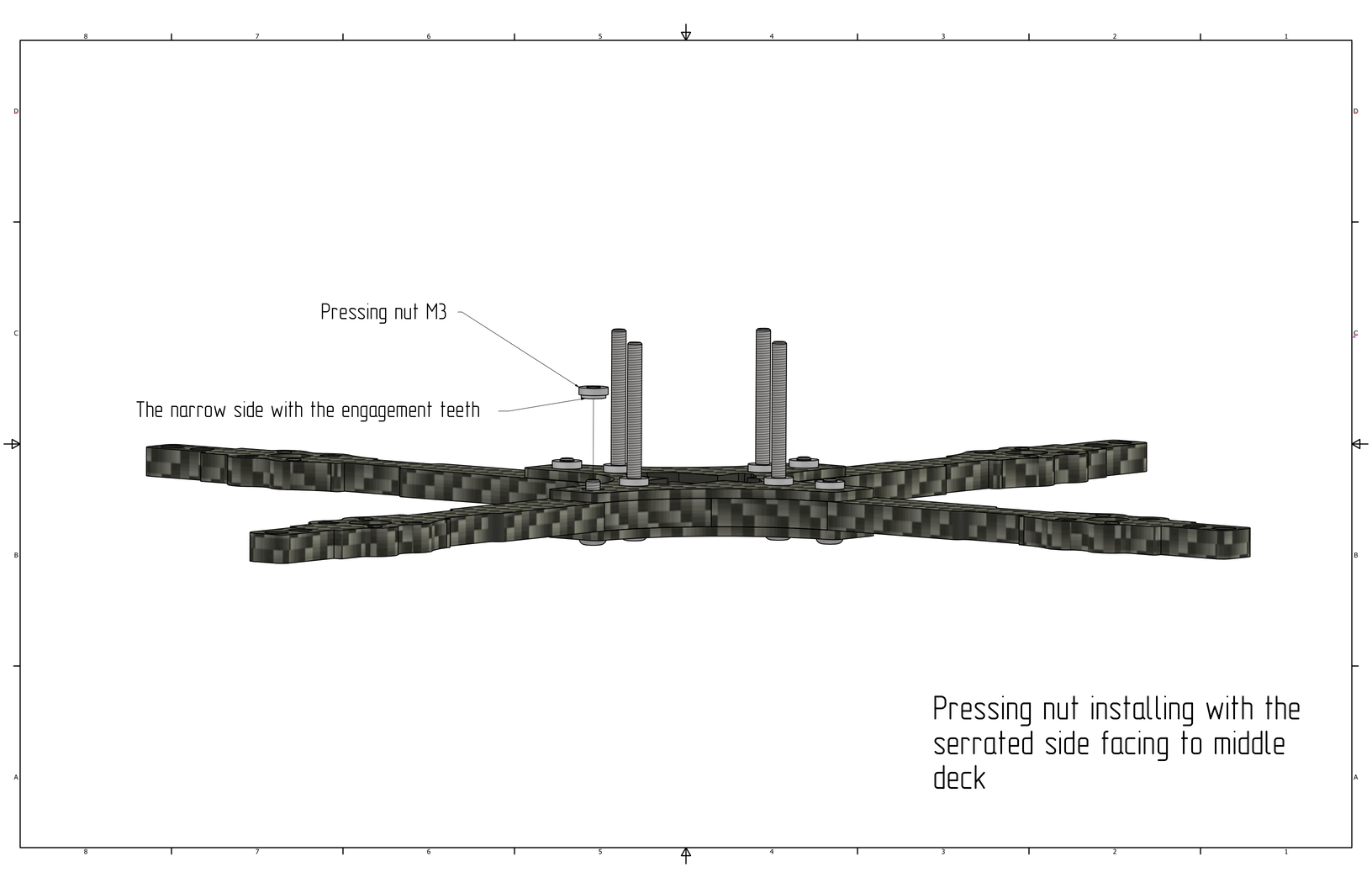

  3. Install M3 press nuts (Cell 1) on the middle plate and secure them with screws.

Motor Installation

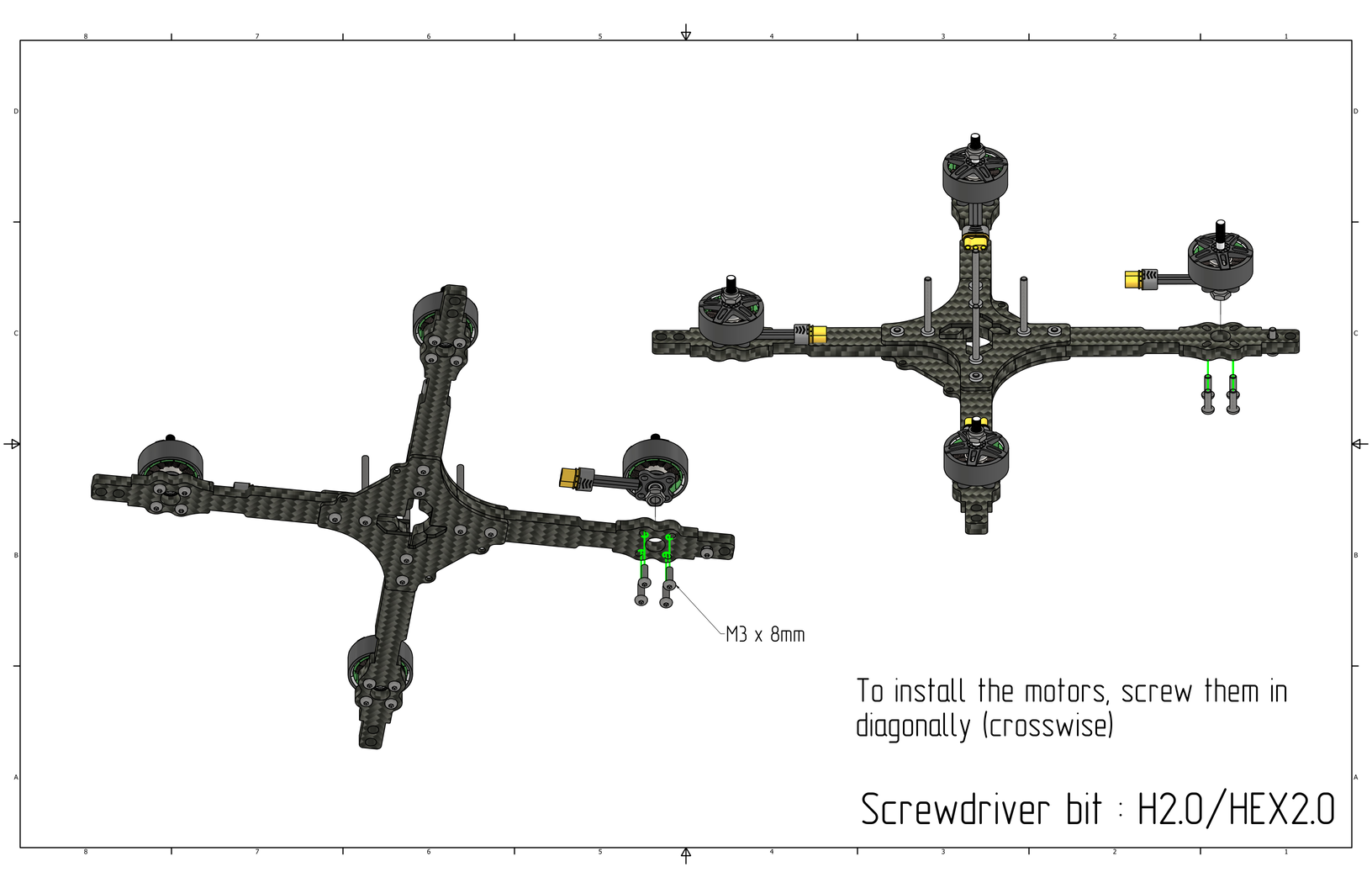

  1. Install the motors into the corresponding holes on the arm using M3x8 screws (Cell 8).

Ensure that the motors are secured with M3x8 screws; otherwise, a short circuit between the windings may occur.

ESC Installation

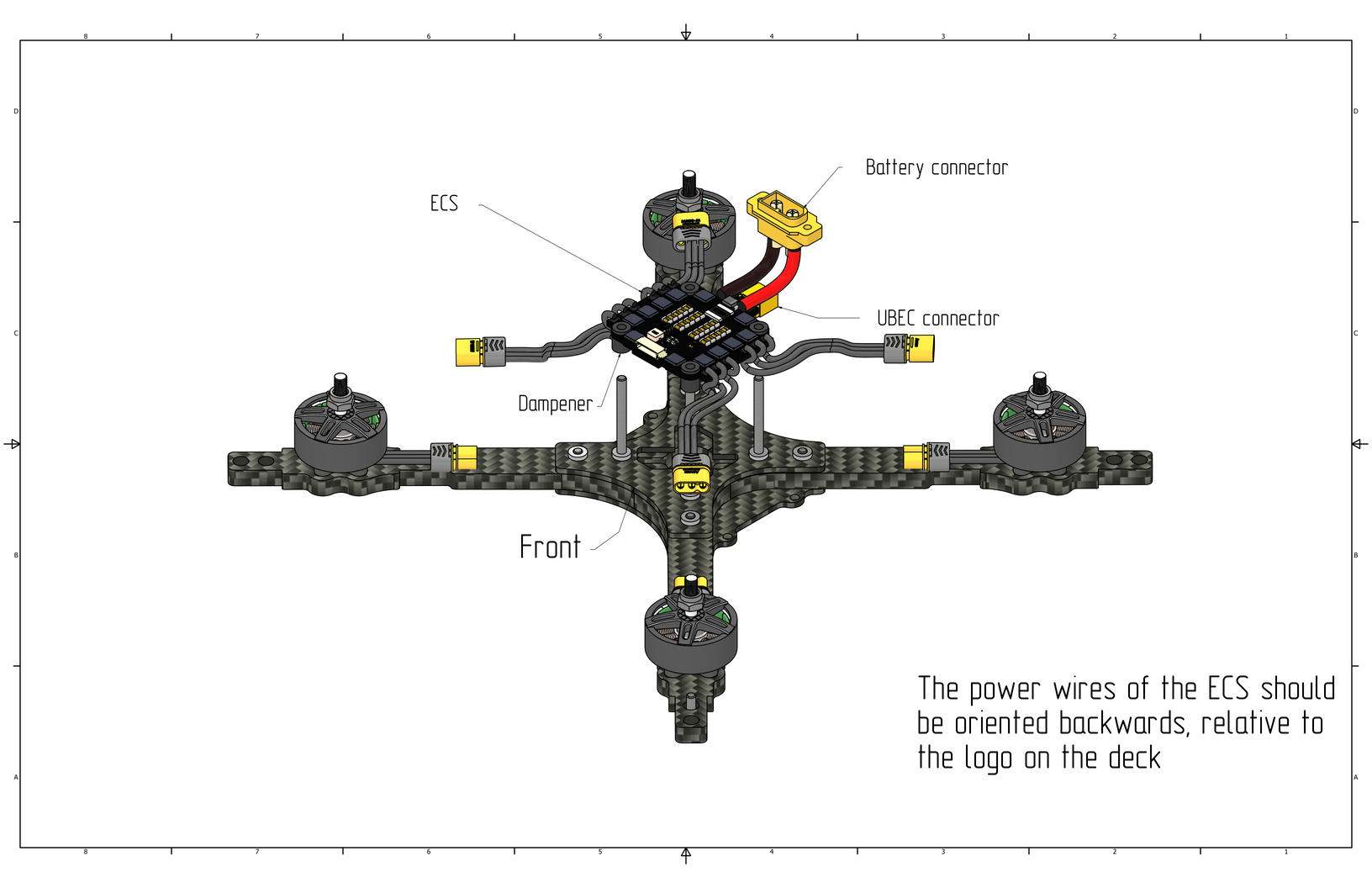

  1. Install the Electronic Speed Controller (ESC) over the M3x40 screws (Cell 6) on the middle plate. The battery power connector should face backward.

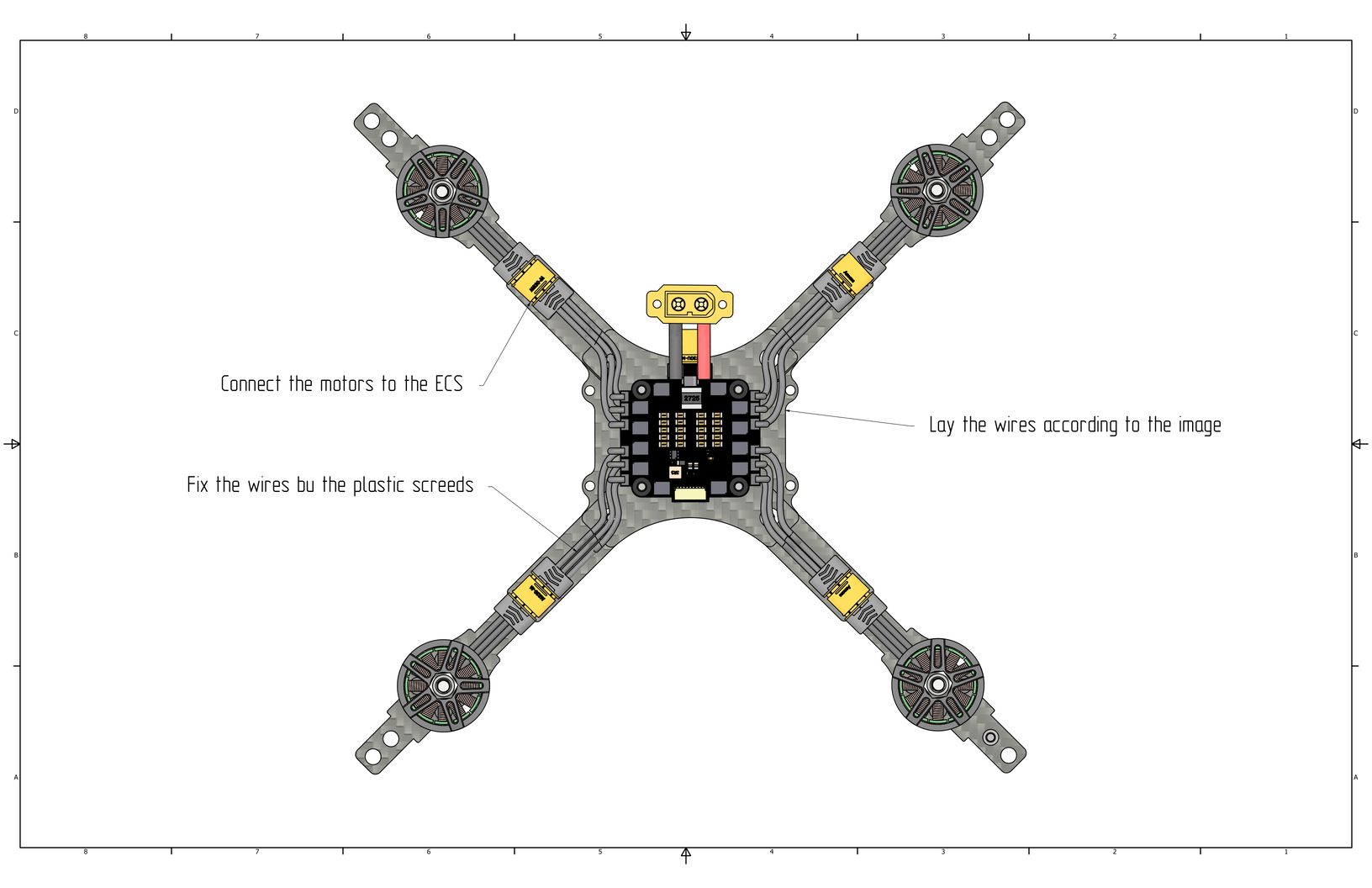

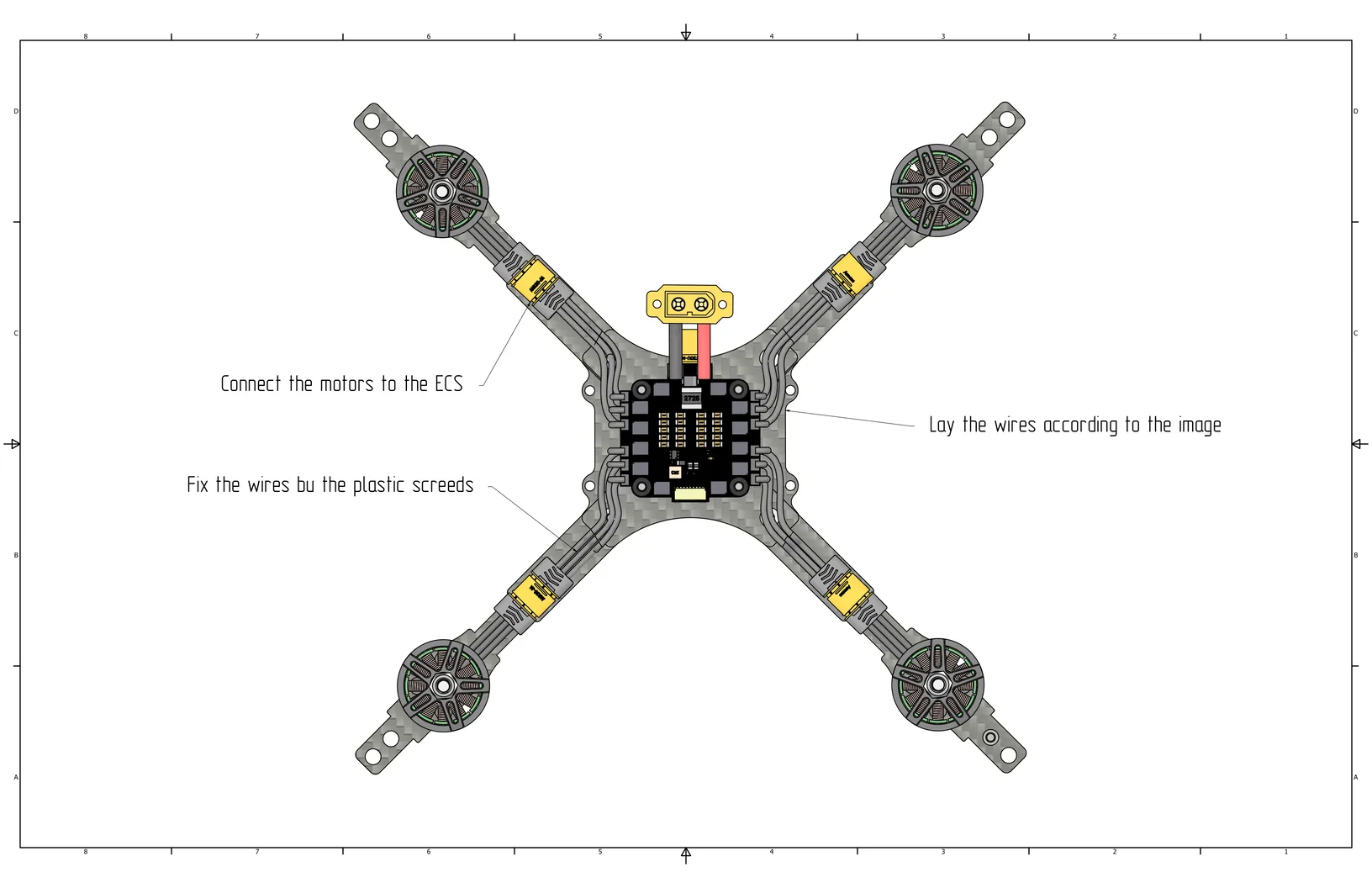

  2. Connect the MR30 connectors from the ESC to the motors, route the wires as shown in the figure, and then secure them to the arms using zip ties (plastic cable ties).

Aluminum Standoffs Installation

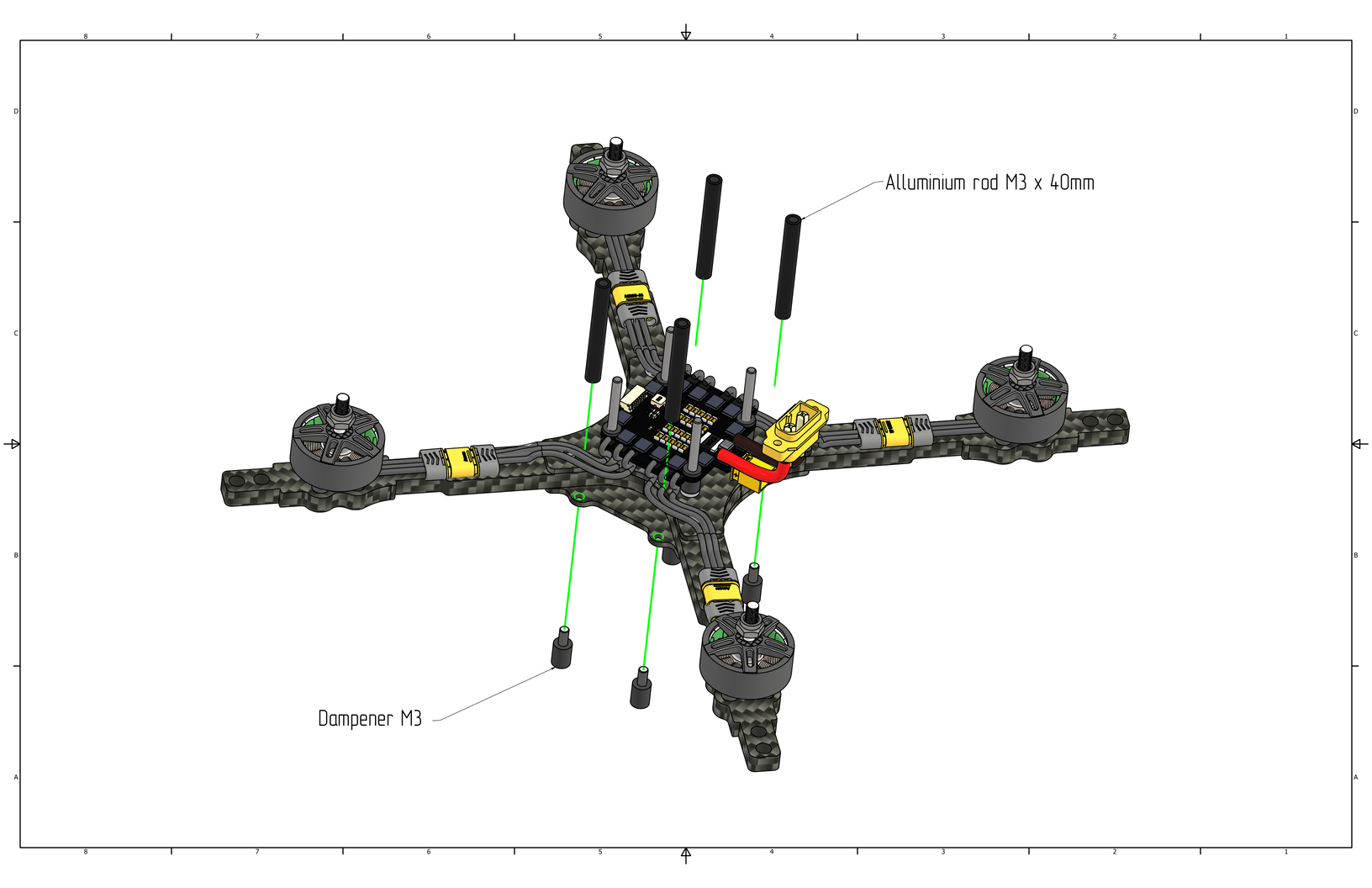

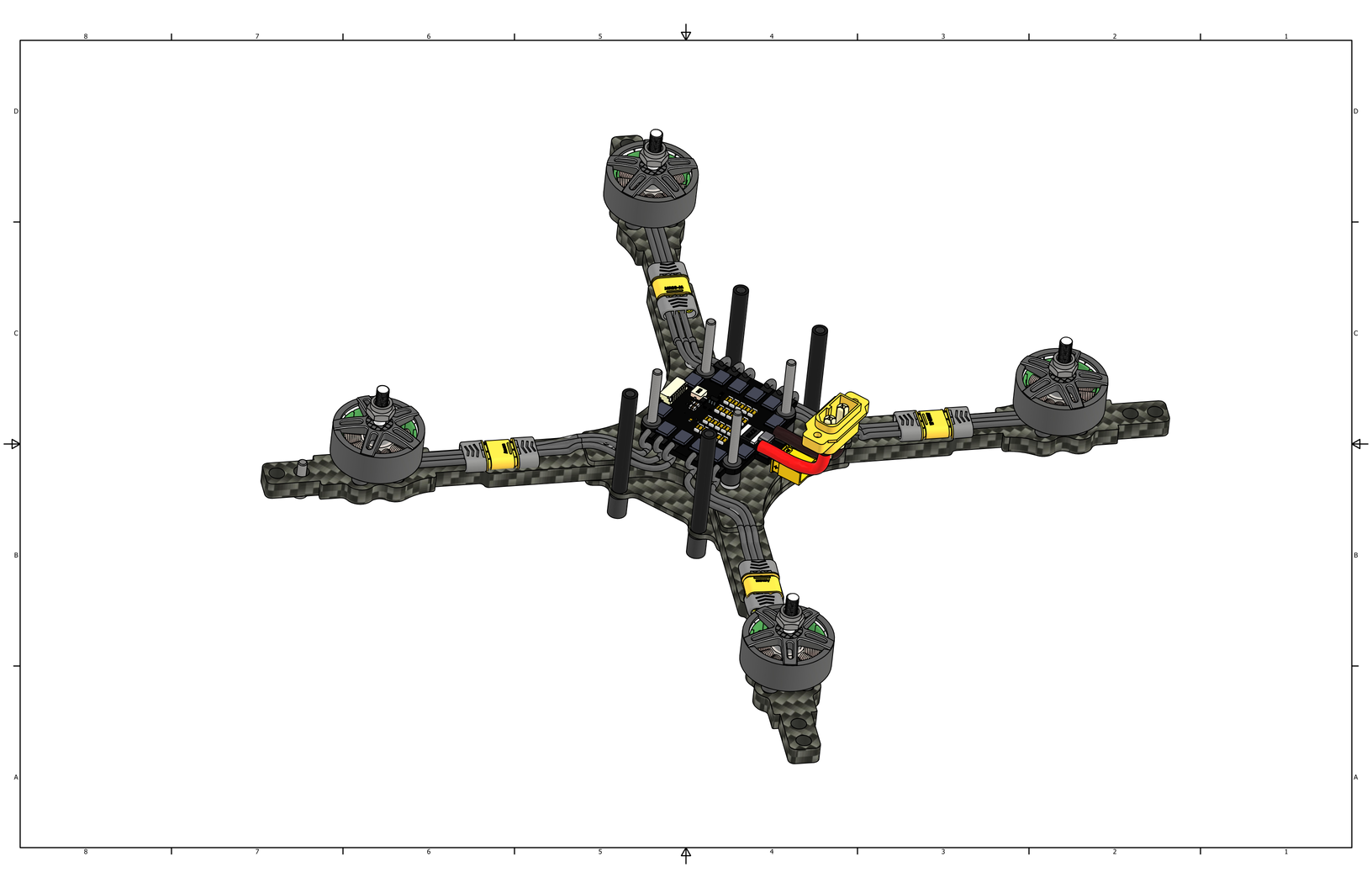

  1. Install M3x40 aluminum standoffs (Cell 11) on the middle plate using M3 damper standoffs (Cell 12).

  2. Tighten the damper standoffs from the bottom plate side.

Flight Controller Installation

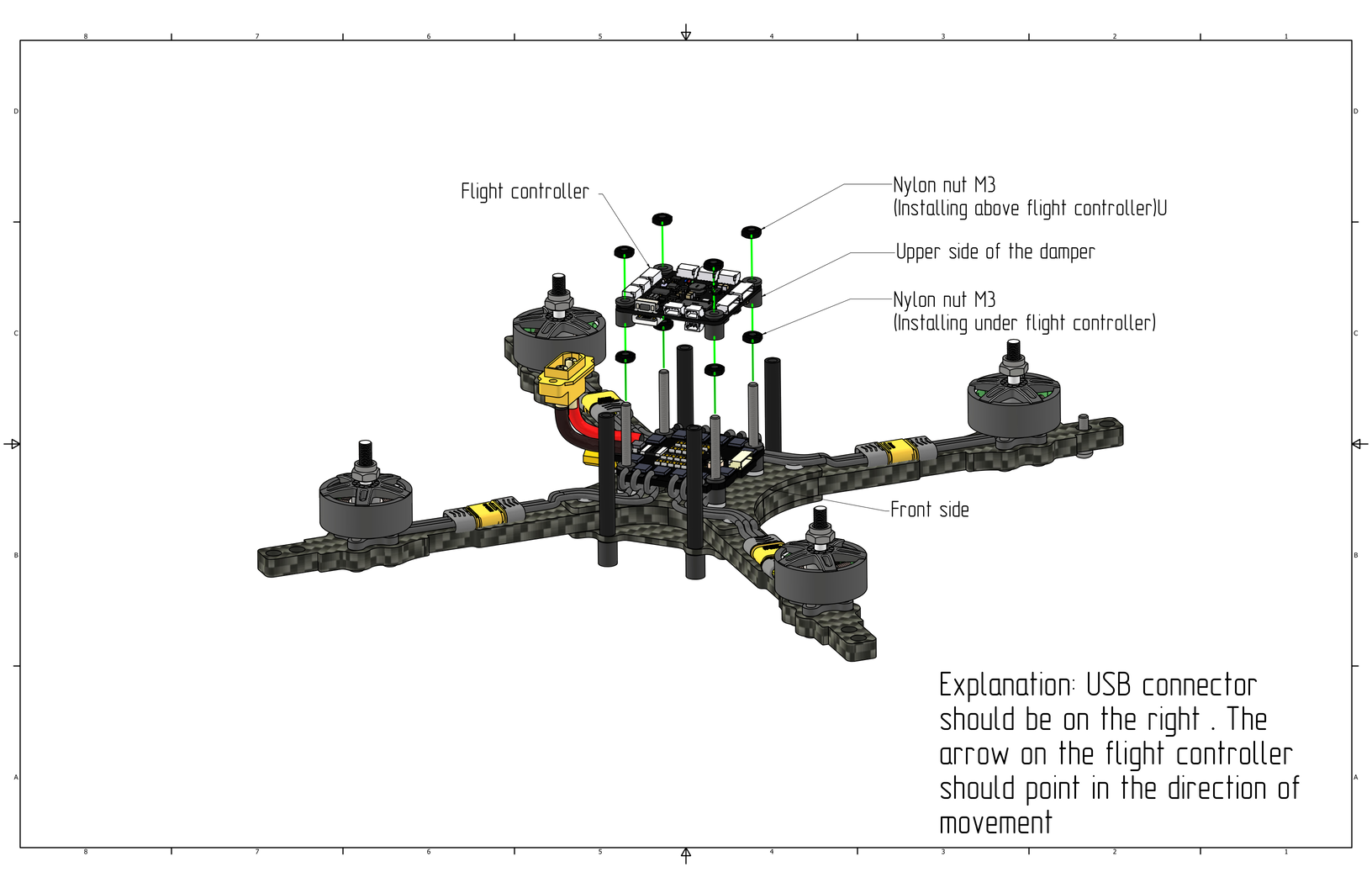

  1. Before installing the flight controller, thread M3 nylon nuts (Cell 2) onto the M3x40 screws (Cell 6), then install the flight controller with the arrow pointing forward. Install nylon nuts to secure the flight controller.

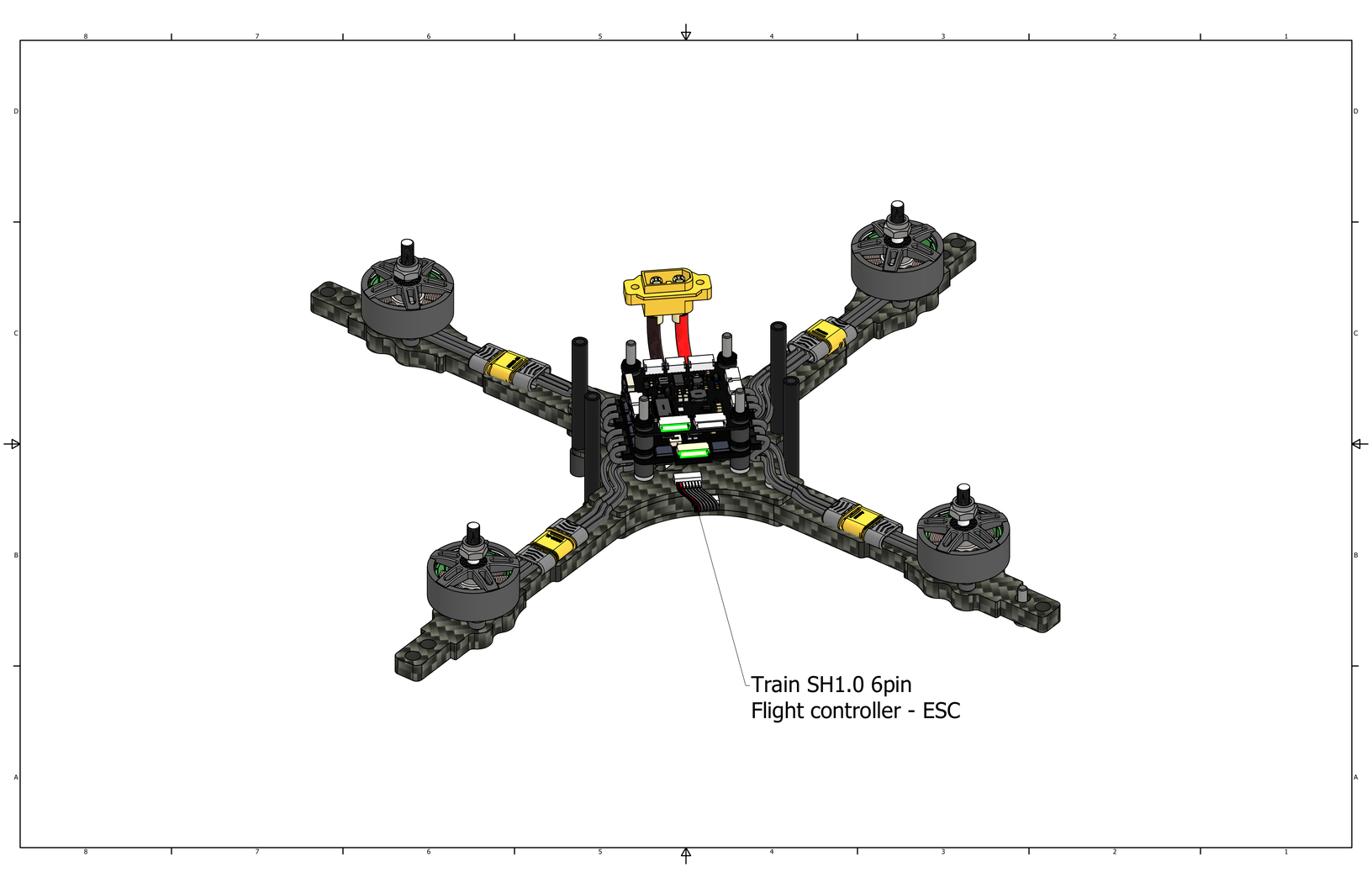

  2. Install the 6-pin cable between the flight controller and the ESC.

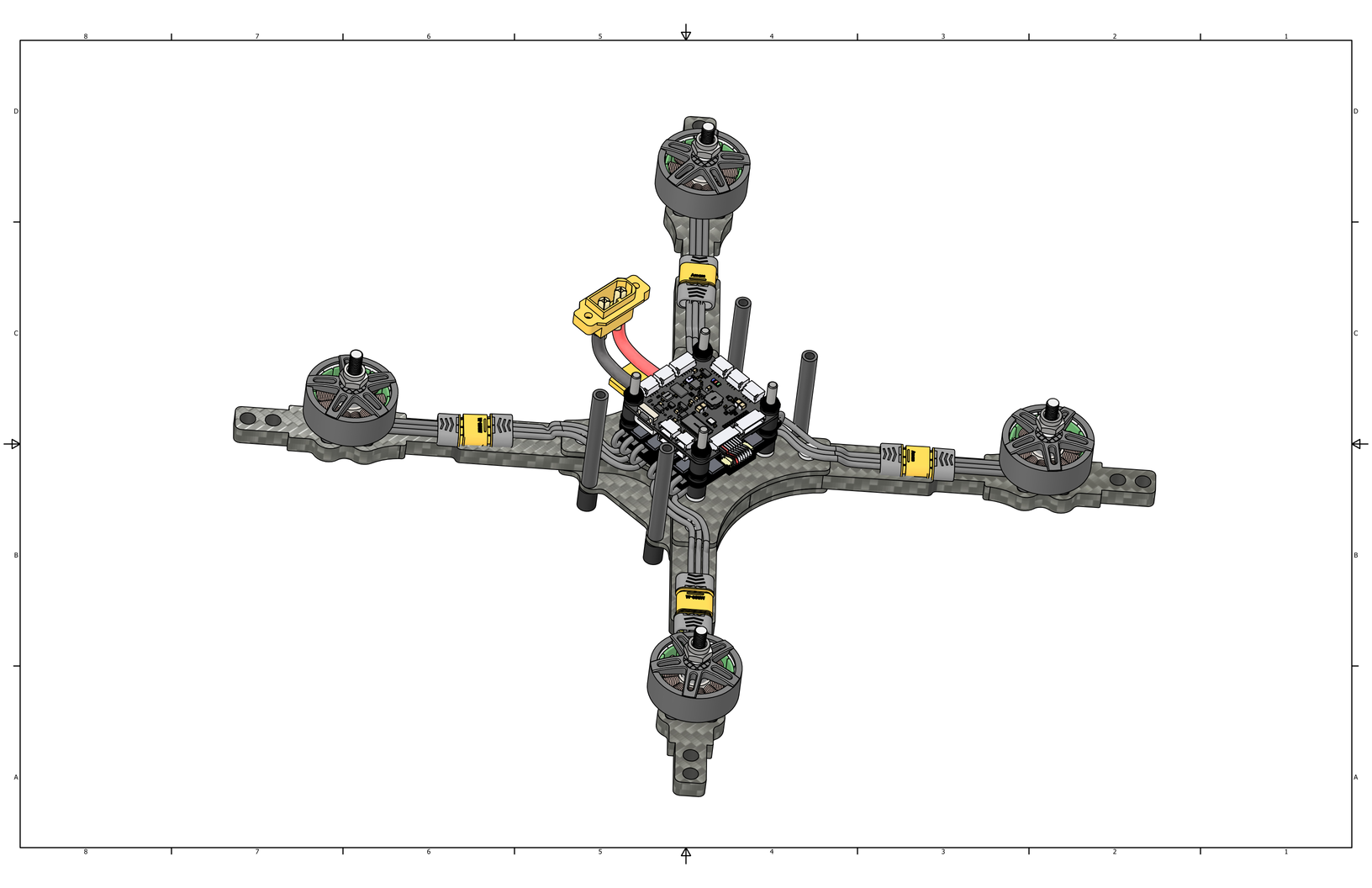

  3. View with the cable installed.

Raspberry Pi Installation

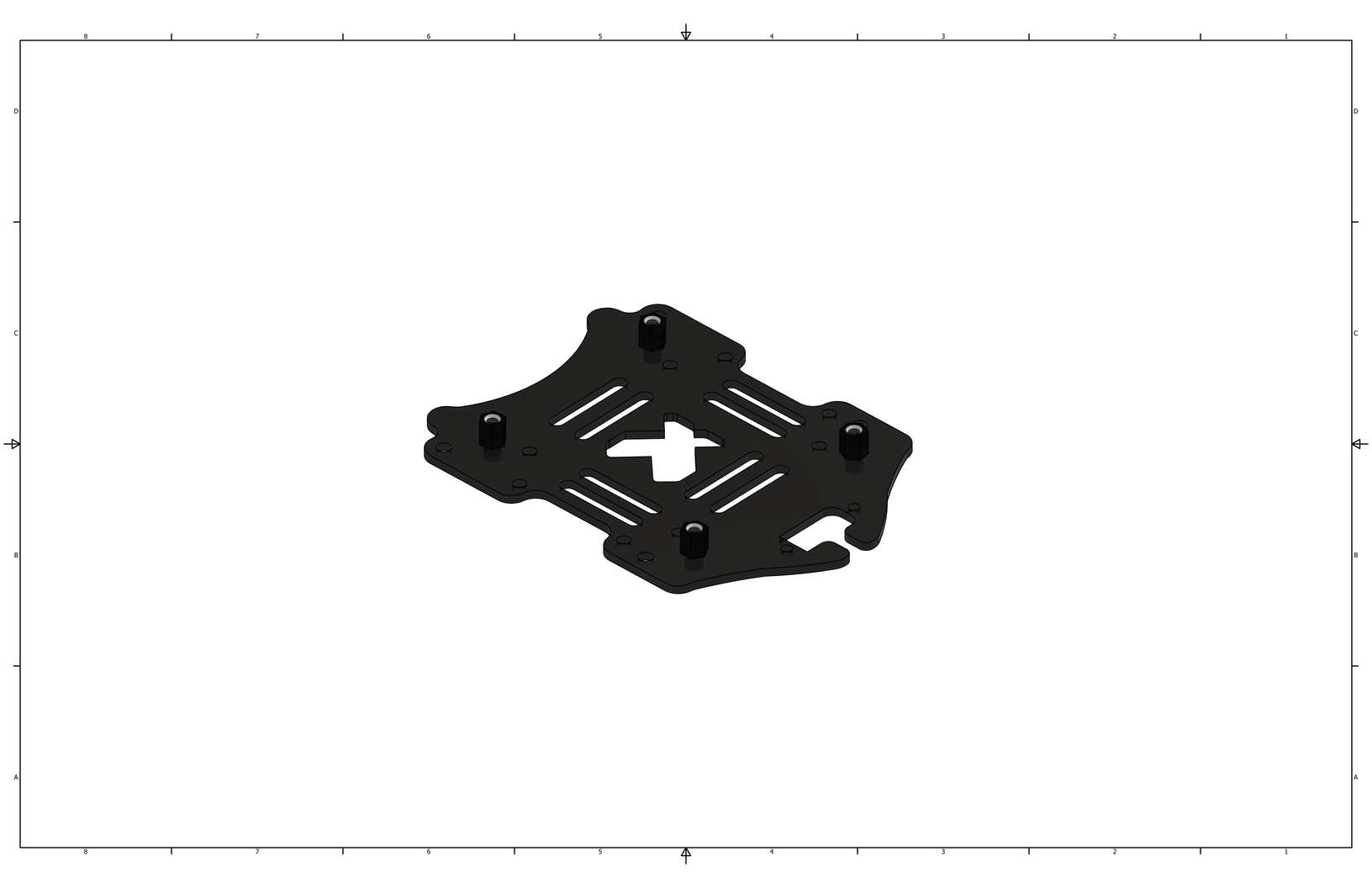

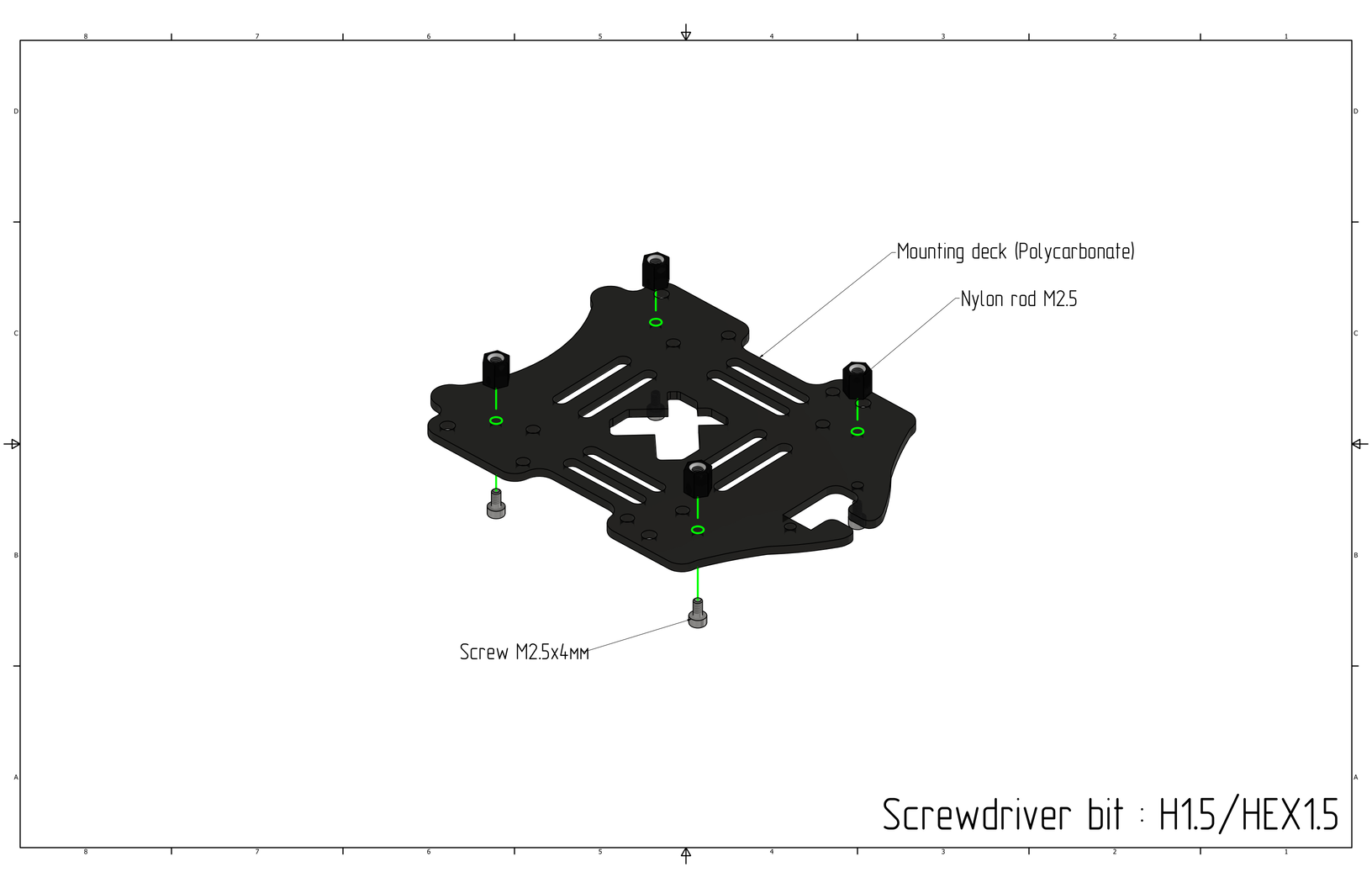

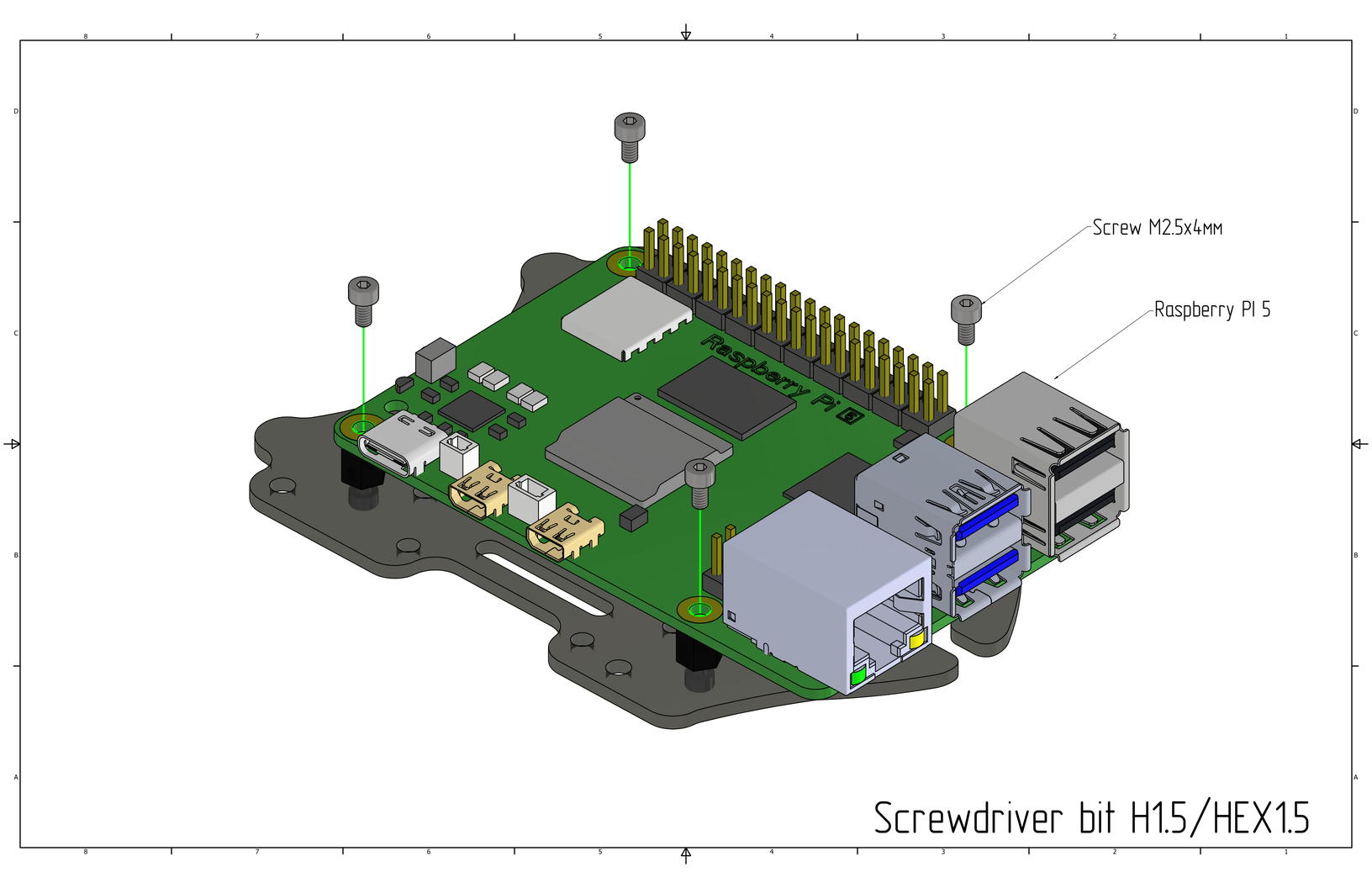

  1. Install M2.5 standoffs (Cell 3) on the polycarbonate mounting plate using M2.5x4 screws (Cell 17).

  2. Tighten the screws. Use an H1.5/HEX1.5 bit.

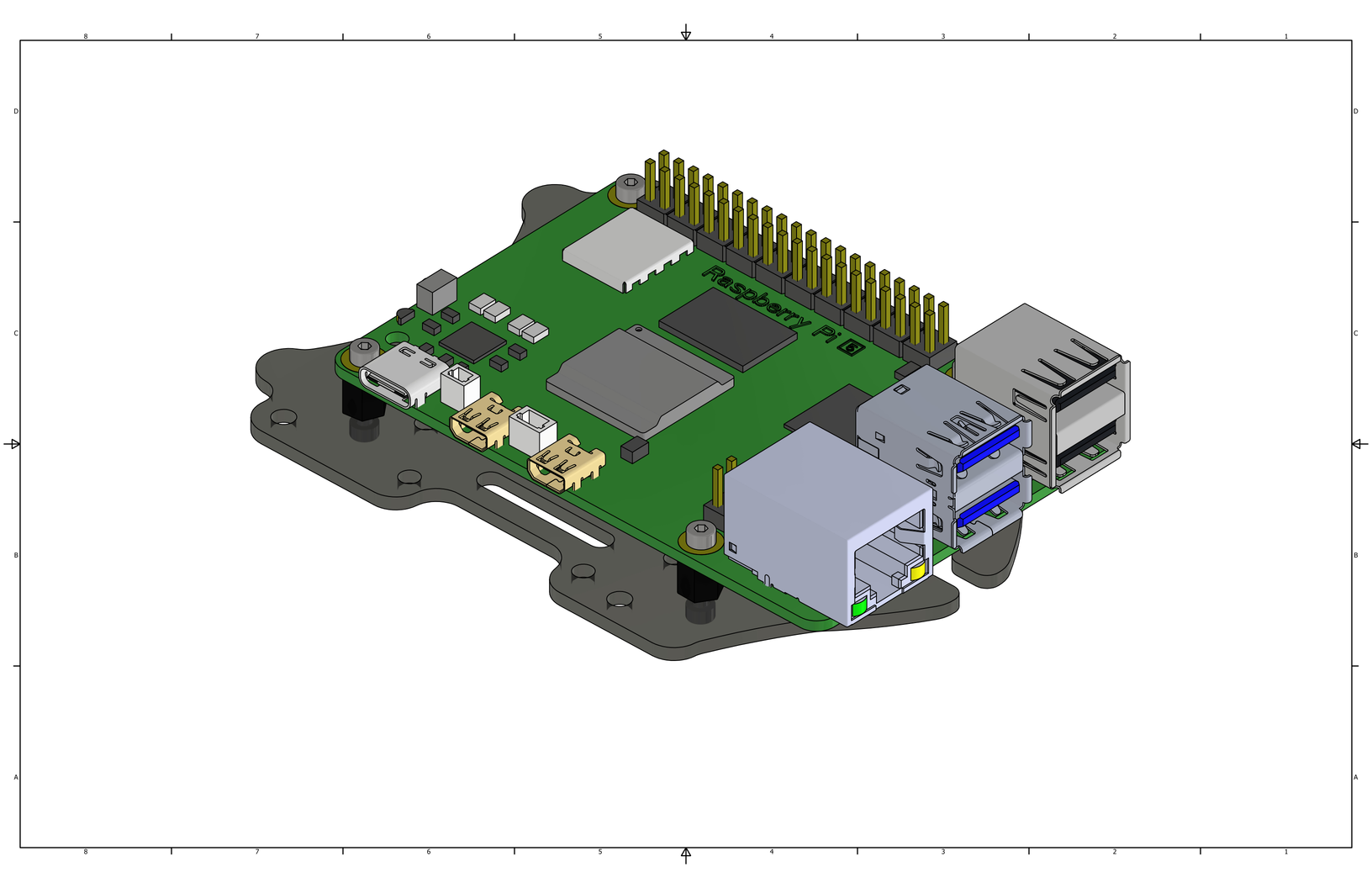

  3. Place the Raspberry Pi 5 on top of the M2.5 standoffs.

  4. Secure the Raspberry Pi 5 board using M2.5x4 screws (Cell 17).

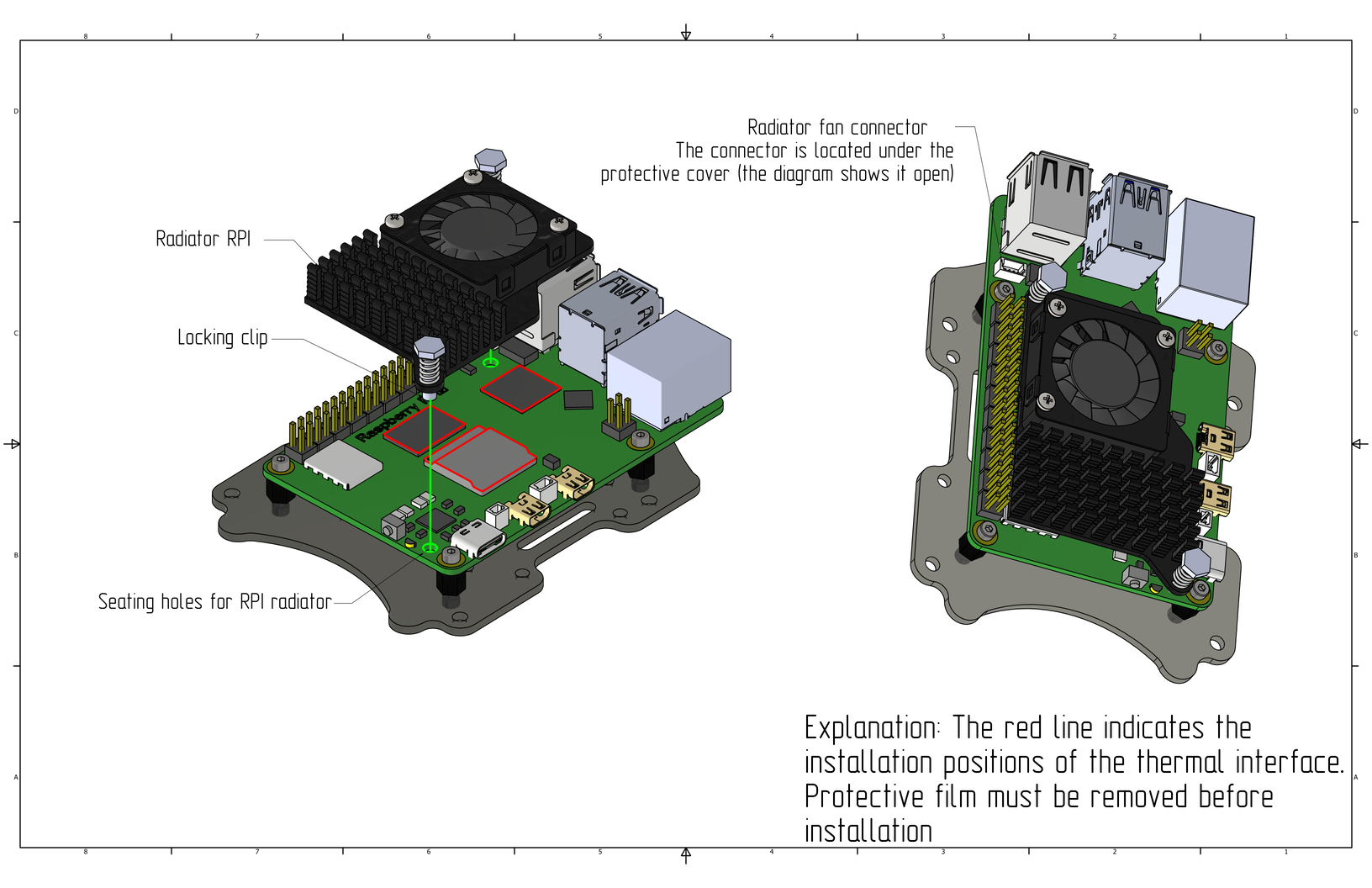

  5. Remove the films from the thermal pads and place them in the positions highlighted in the image. Install the cooling heatsink on the Raspberry Pi by inserting the locking clips through the heatsink into the Raspberry Pi. Connect the cooling system to the port marked in the image.

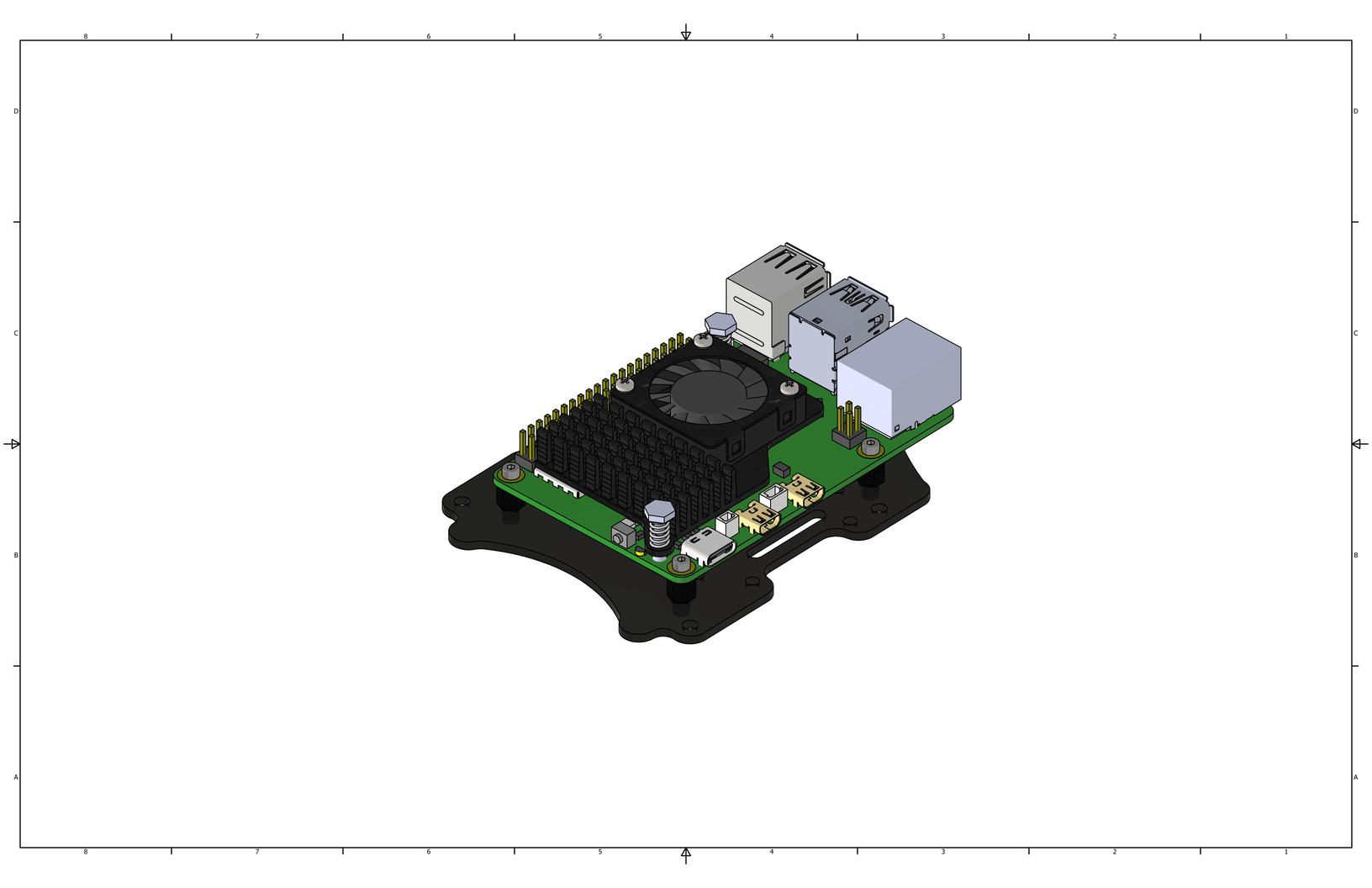

  6. Raspberry Pi with heatsink assembled.

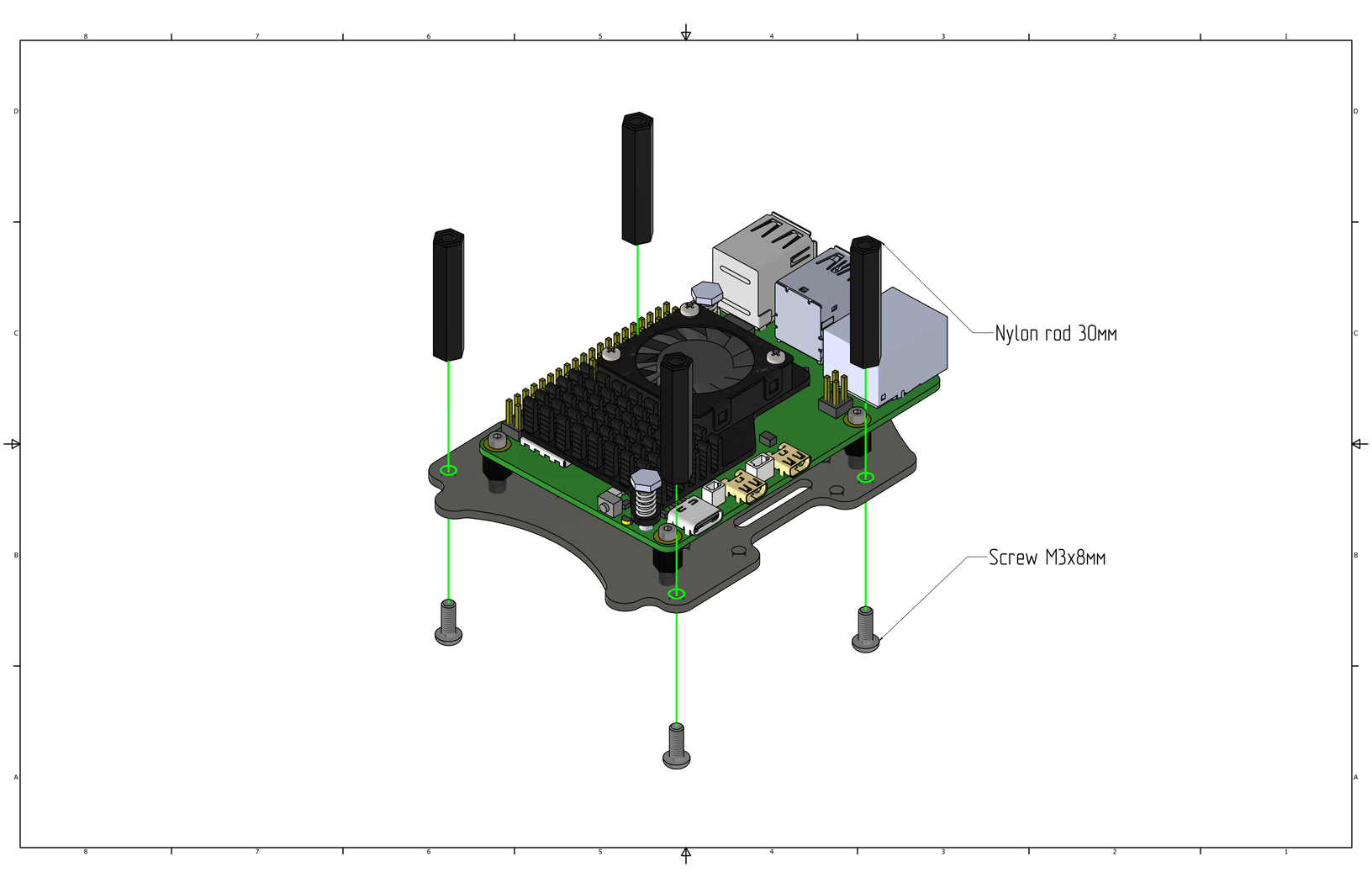

  7. Install 30mm nylon standoffs (Cell 21) on the plate with the Raspberry Pi using M3x8 screws (Cell 8).

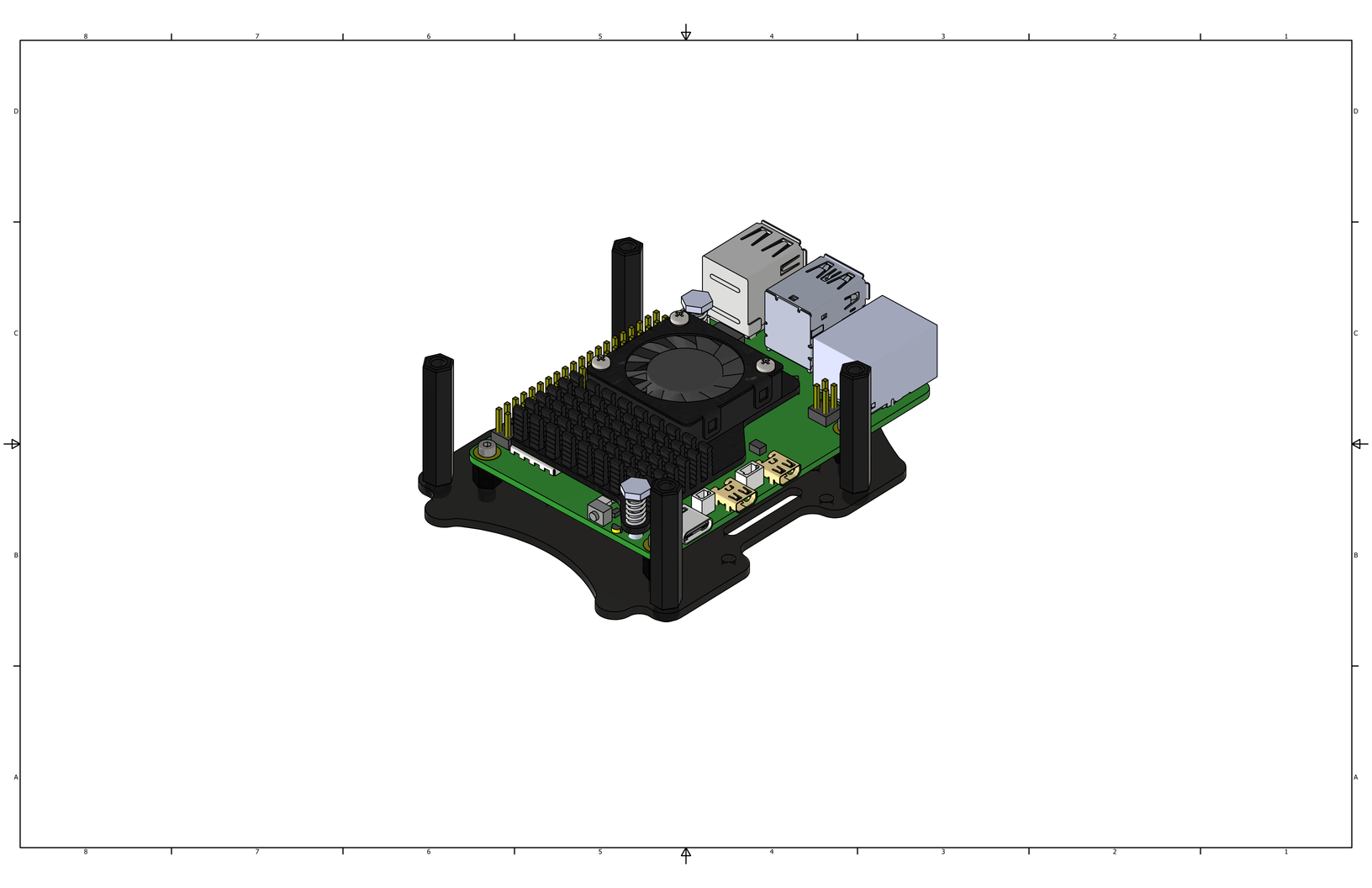

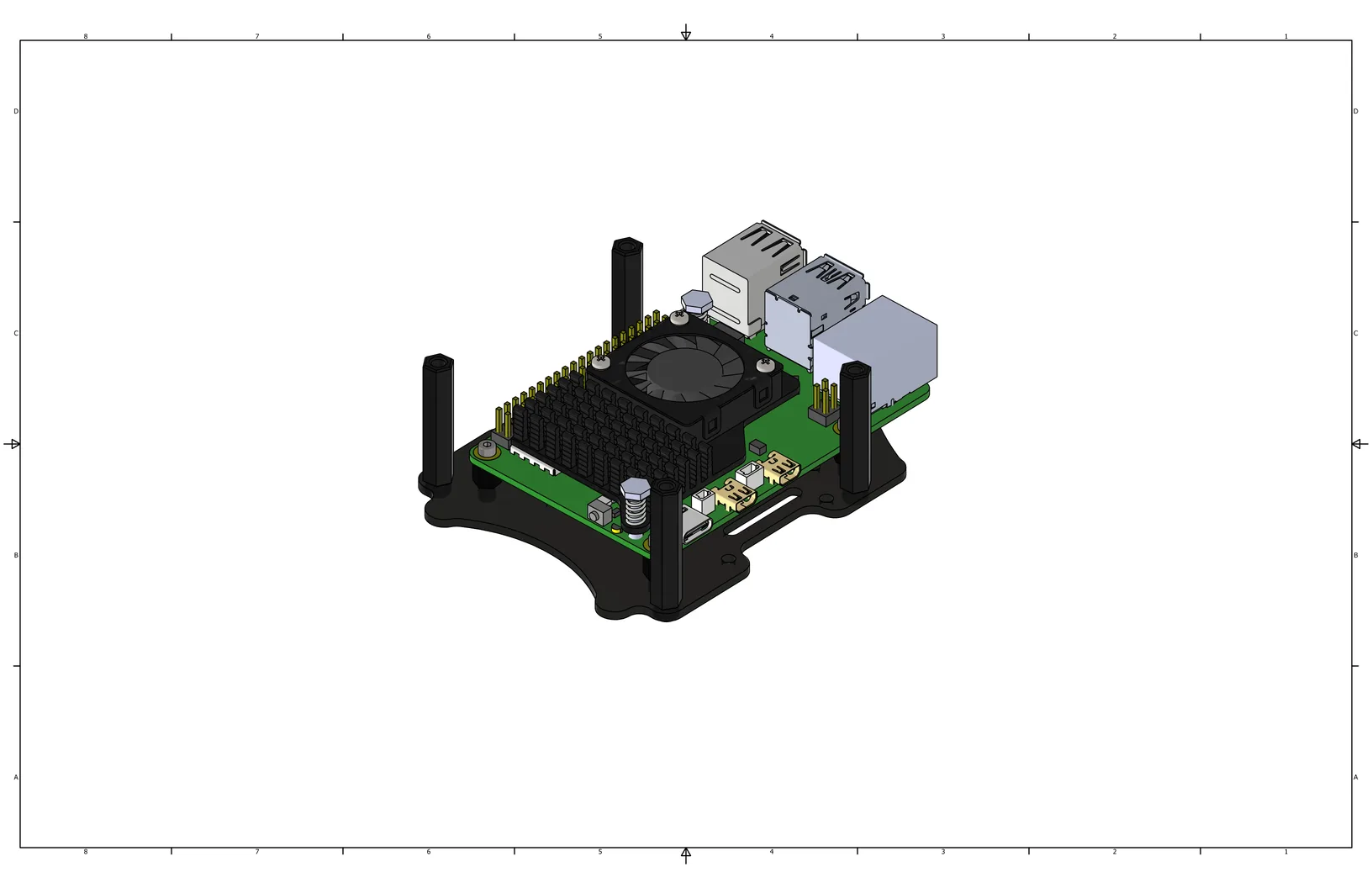

  8. View with nylon standoffs installed.

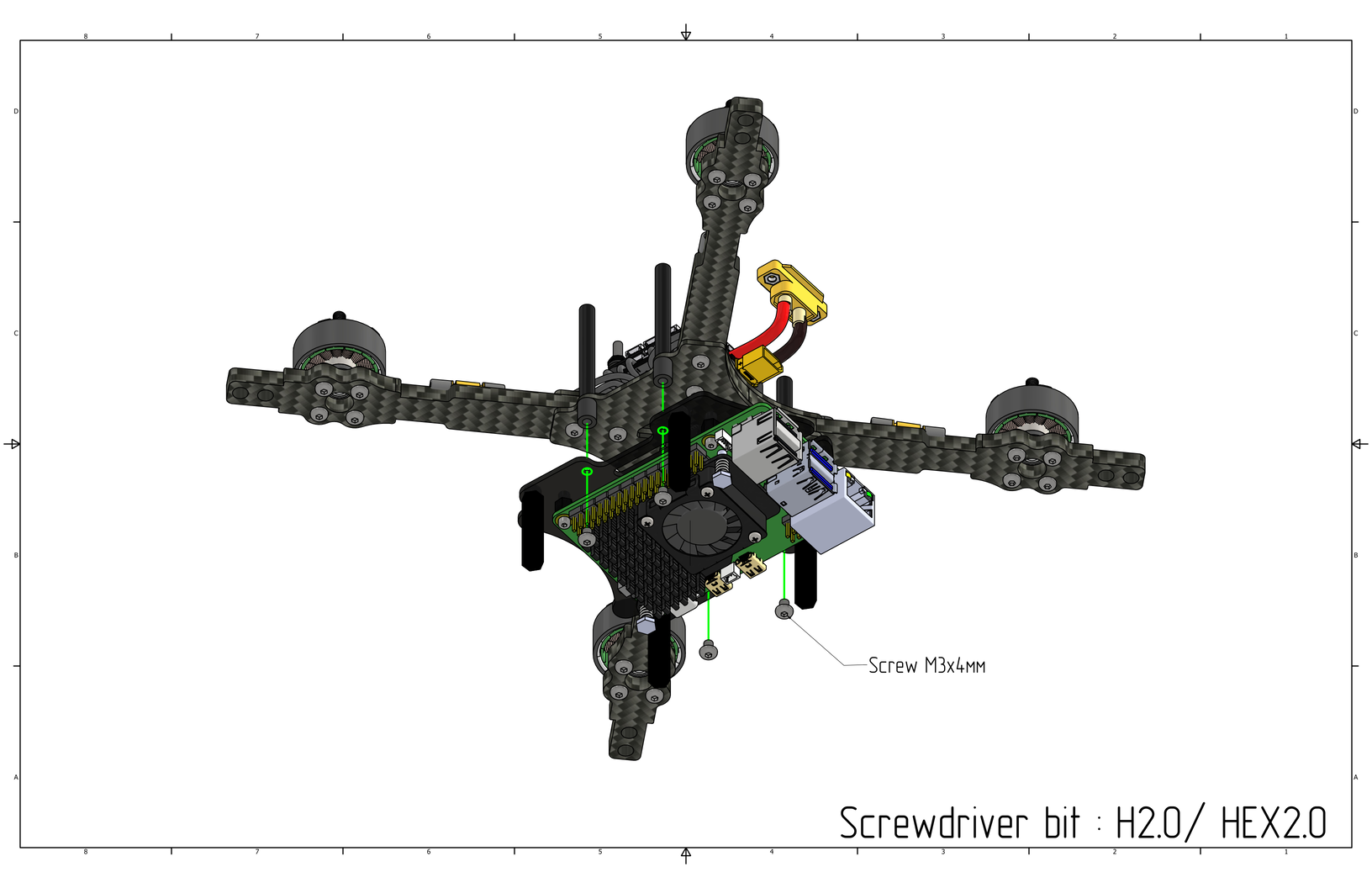

  9. Install the assembled plate with the Raspberry Pi onto the bottom part of the quadcopter into the damper standoffs, secure with M3x4 screws (Cell 10).

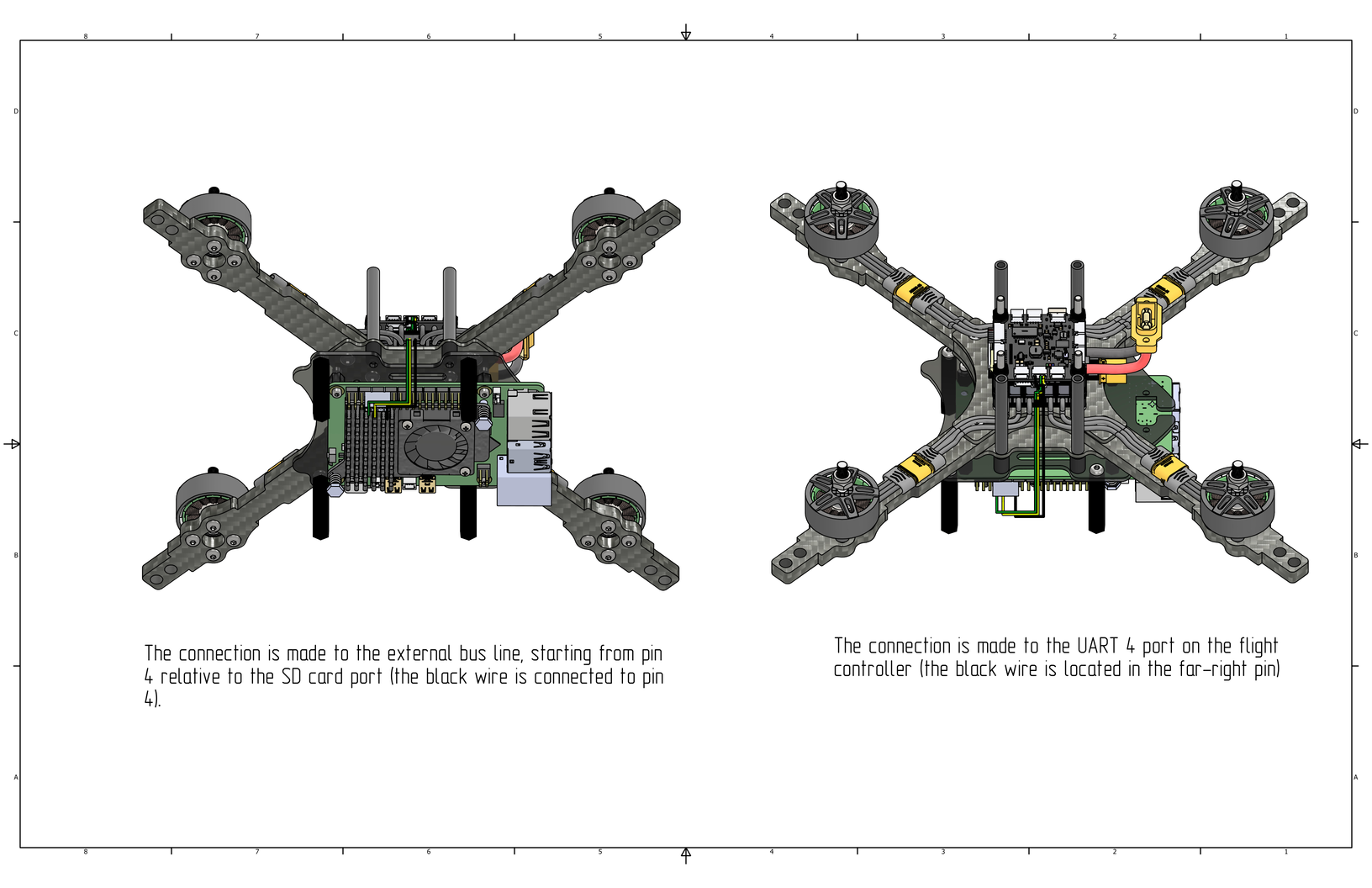

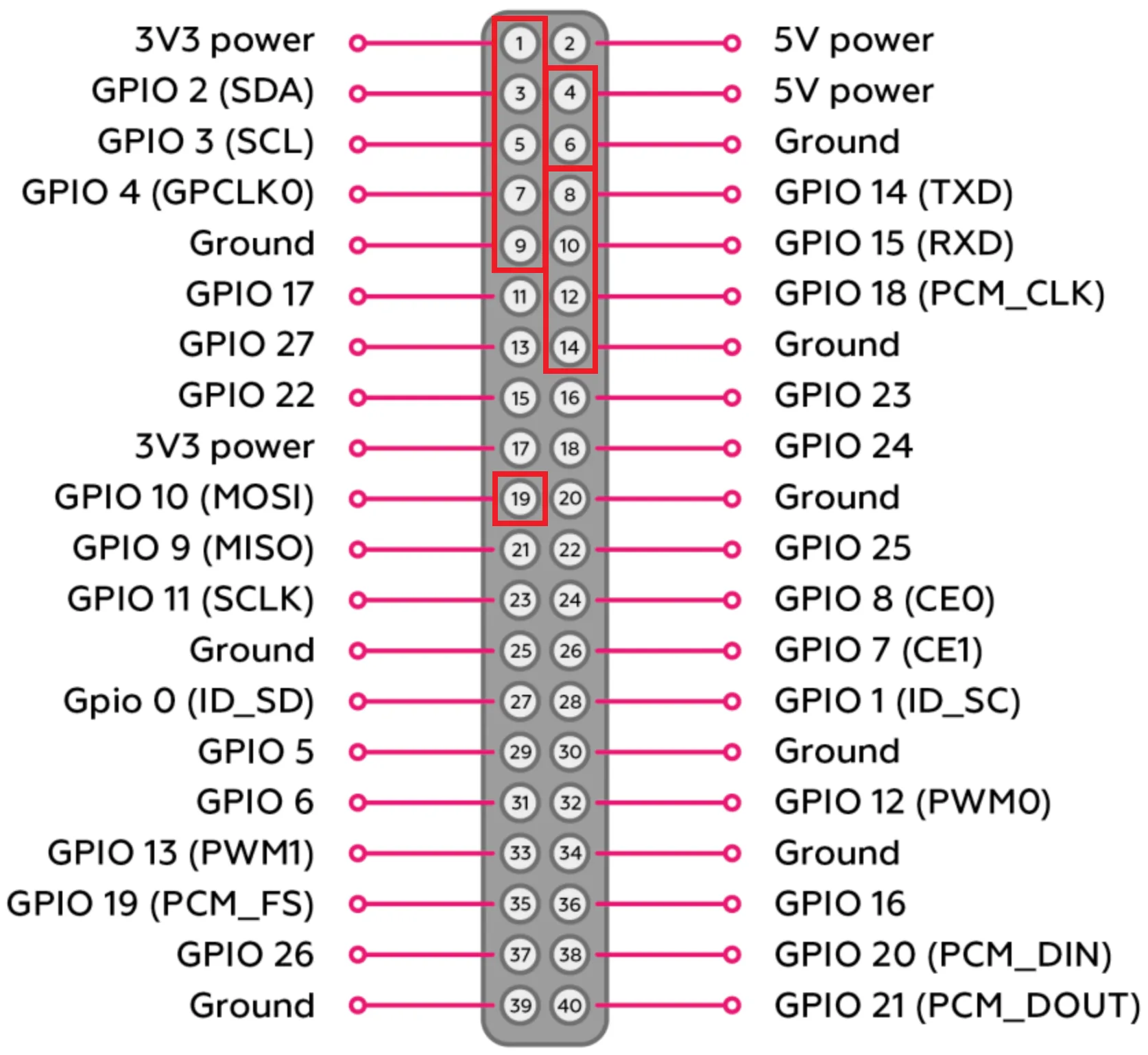

  10. Connect the data cable to the Raspberry Pi. The connection is made to the outer row of the header, starting from the 4th port relative to the SD card port (black wire in port 14, see pinout). The other end connects to the UART 4 port on the flight controller (black wire is located in the far right corner).

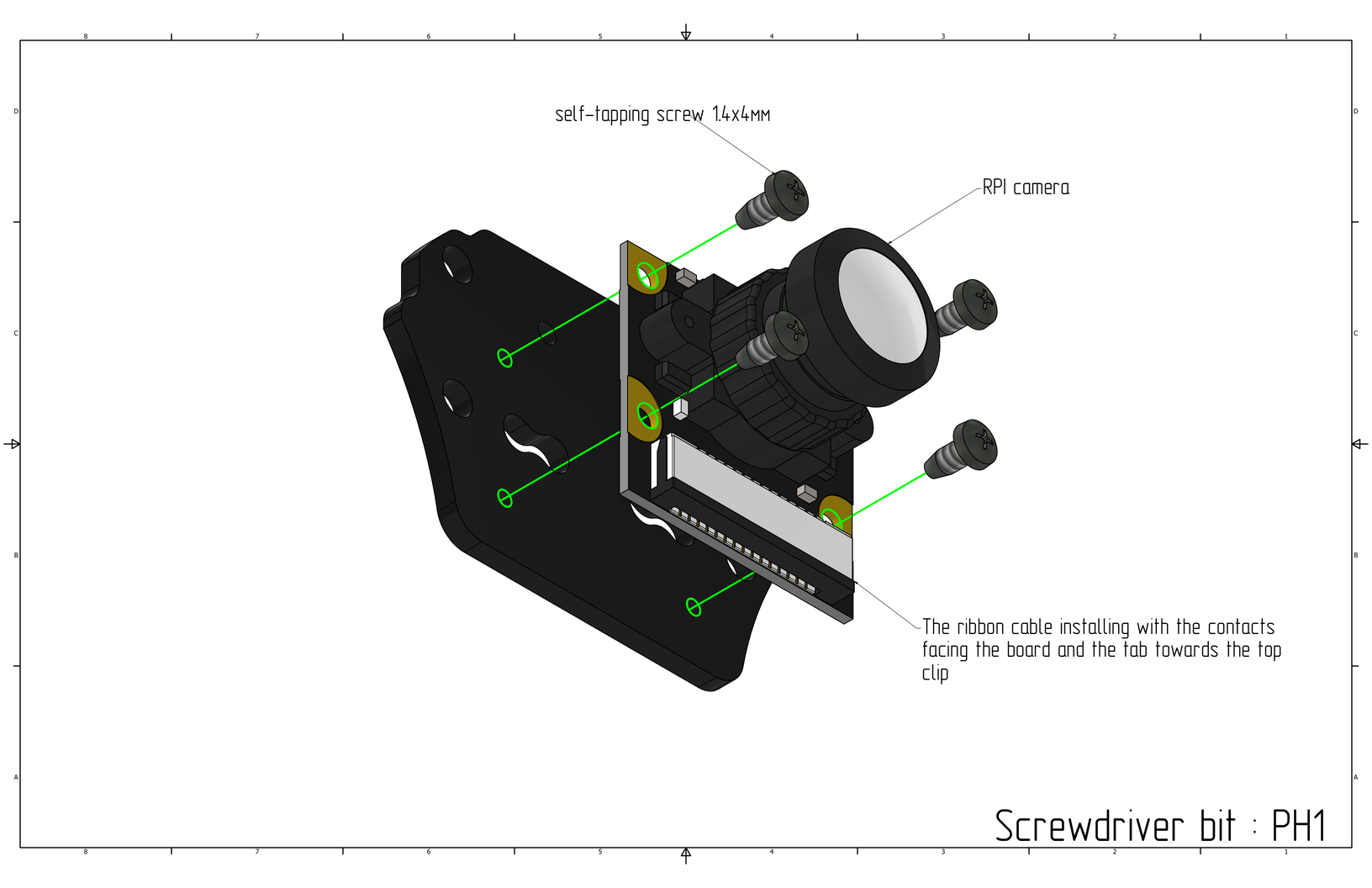

  11. Install the camera on the small mounting plate with the tab towards the top clip and secure it using two M1.4x4 self-tapping screws (Cell 19) in the top left and bottom right corners. Assembly bit: PH1.

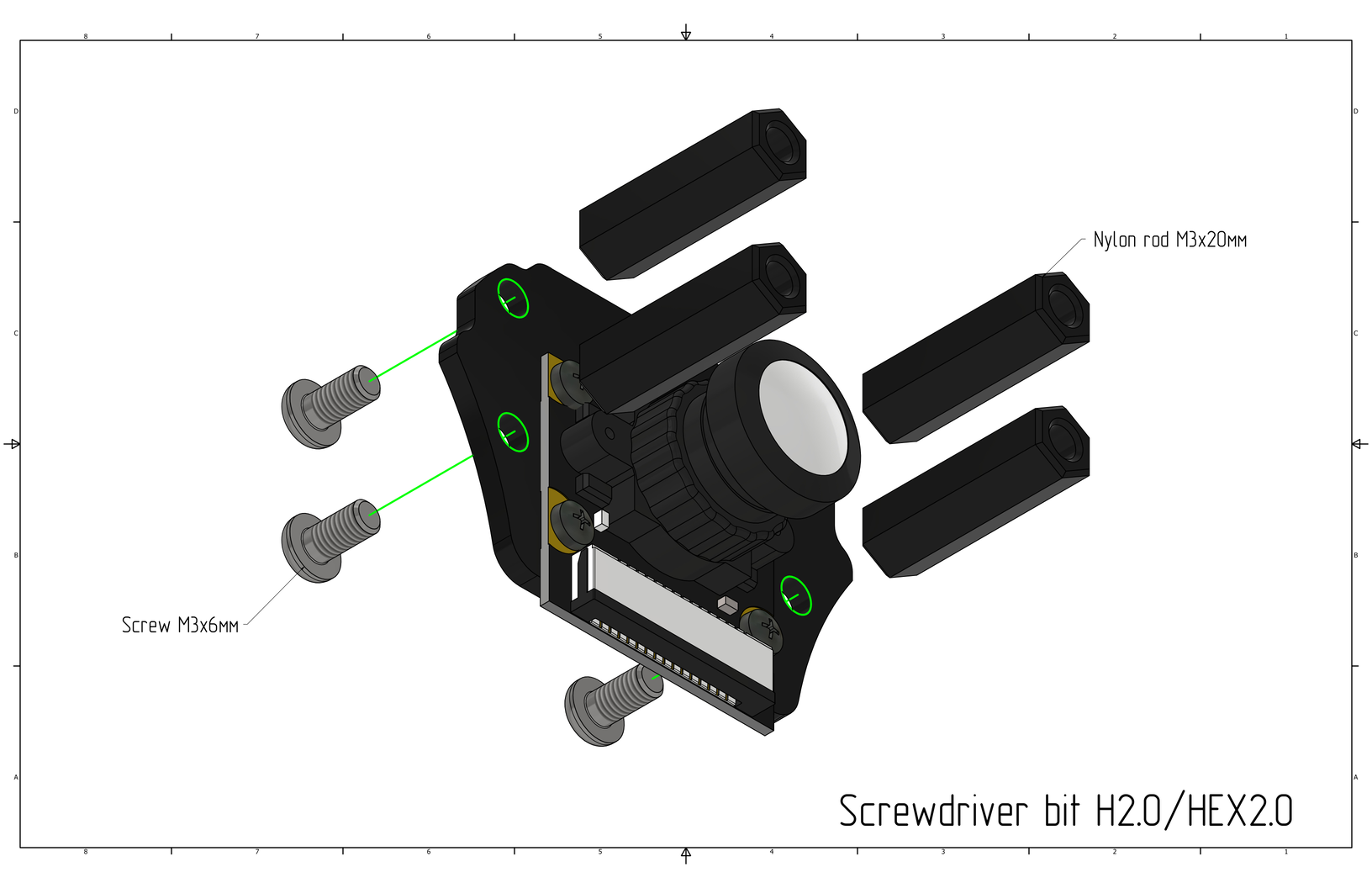

  12. Install 20mm nylon standoffs (Cell 22) on the small mounting plate and secure with M3x6 screws (Cell 9).

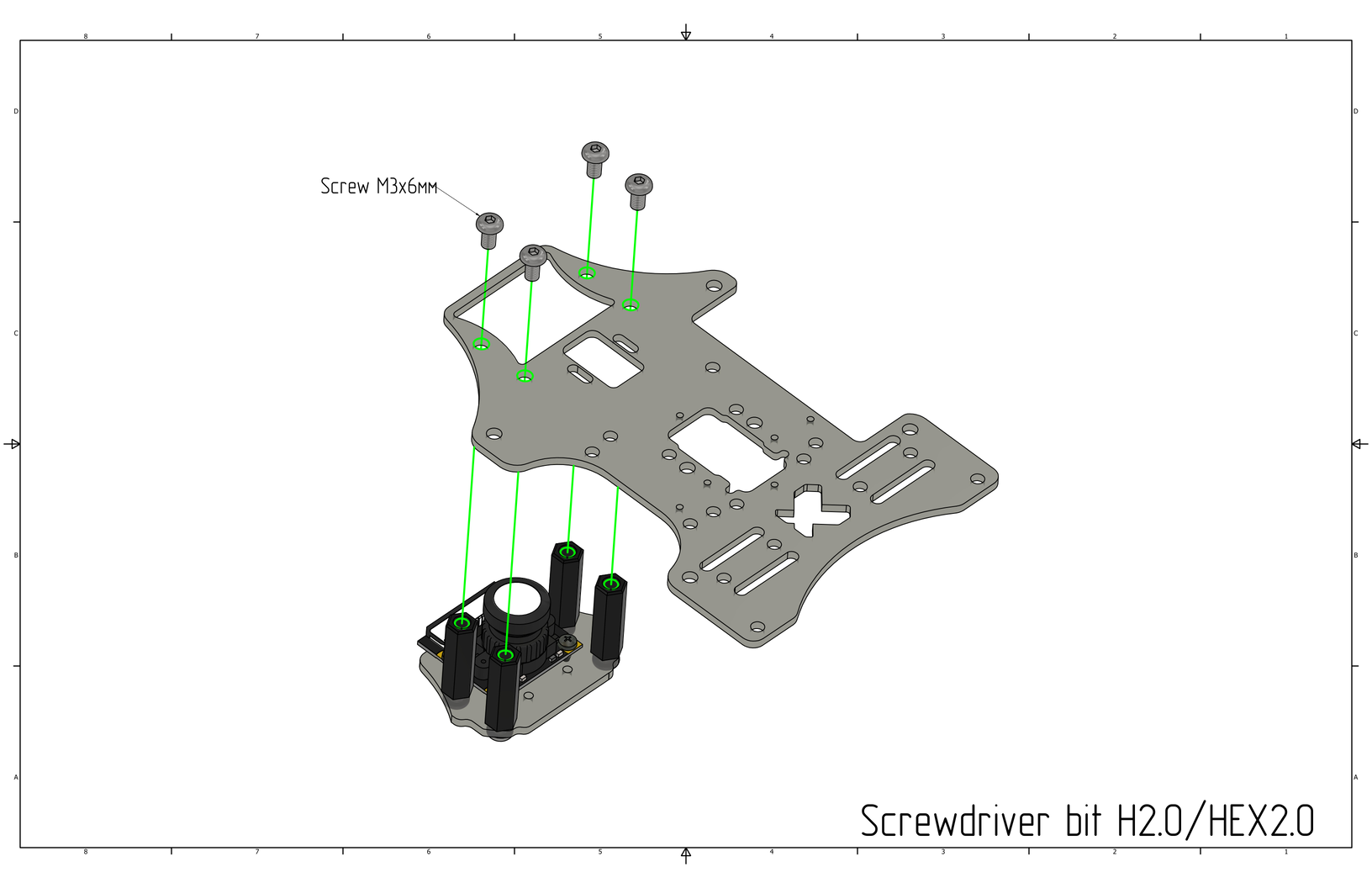

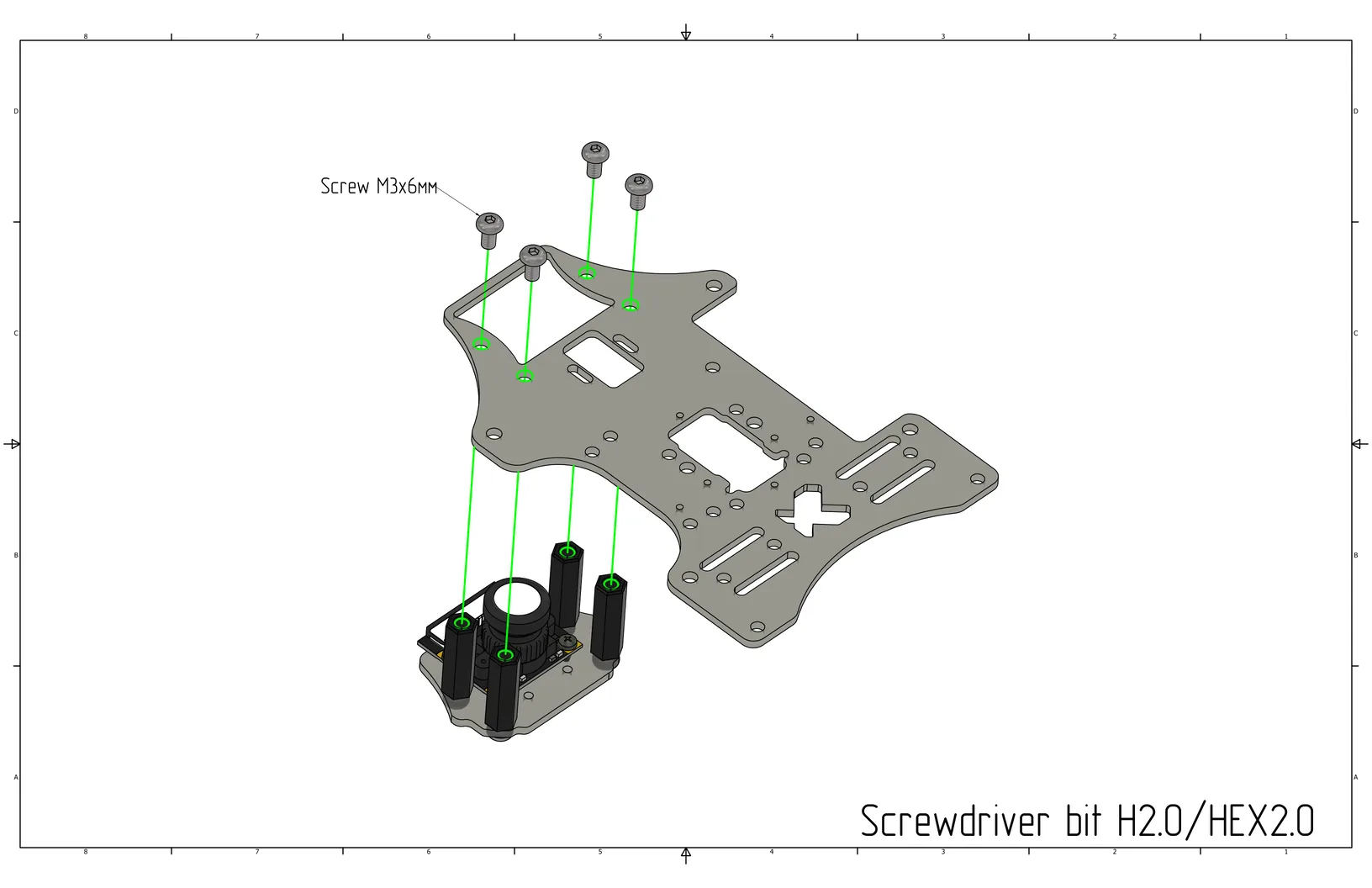

  13. Install the small mounting plate with the camera onto the gripper plate using M3x6 screws (Cell 9).

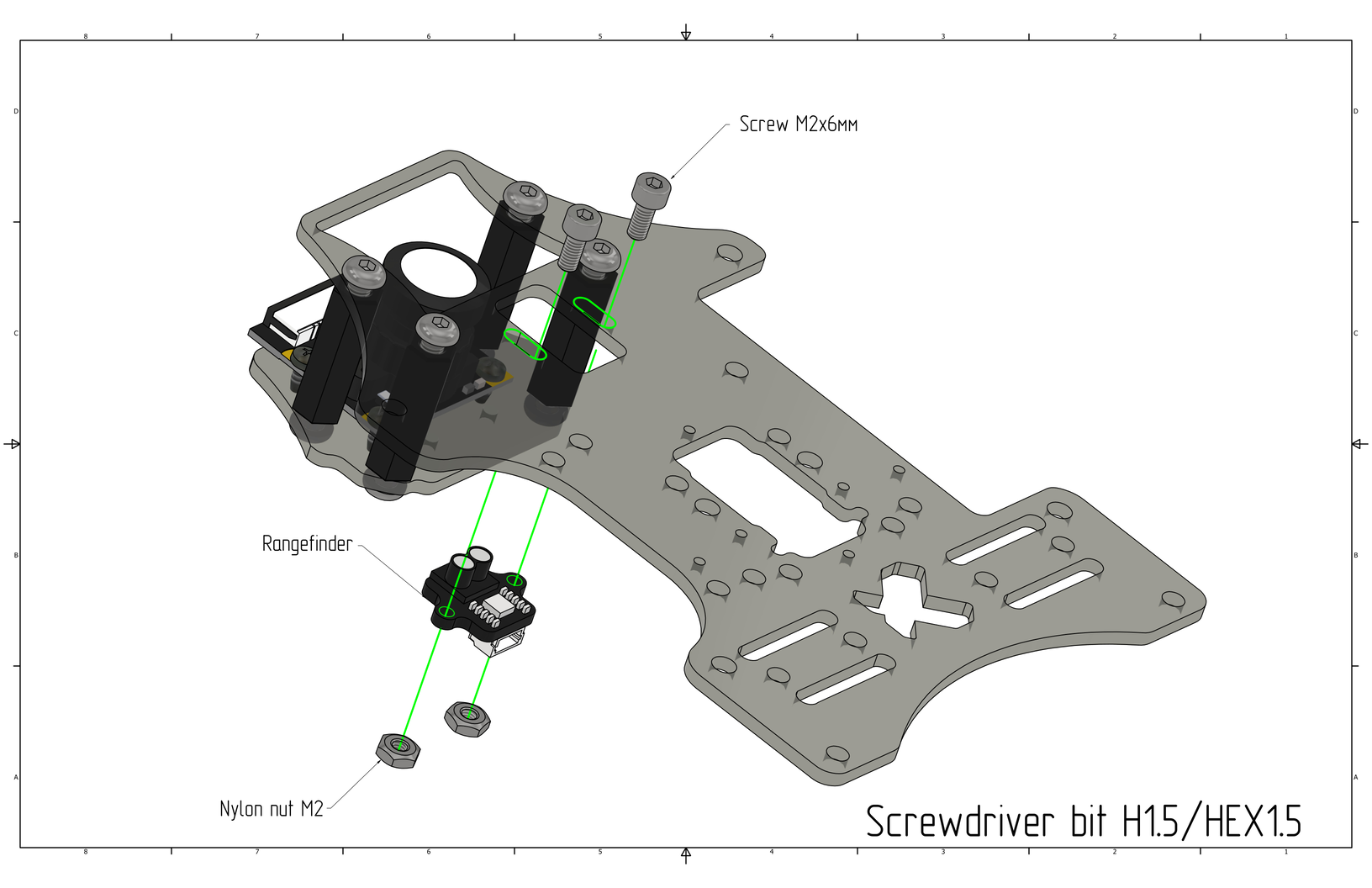

  14. Install the laser rangefinder on the gripper plate using M2x6 screws (Cell 16) and M2 nylon nuts (Cell 5).

  15. Connect the laser rangefinder cable.

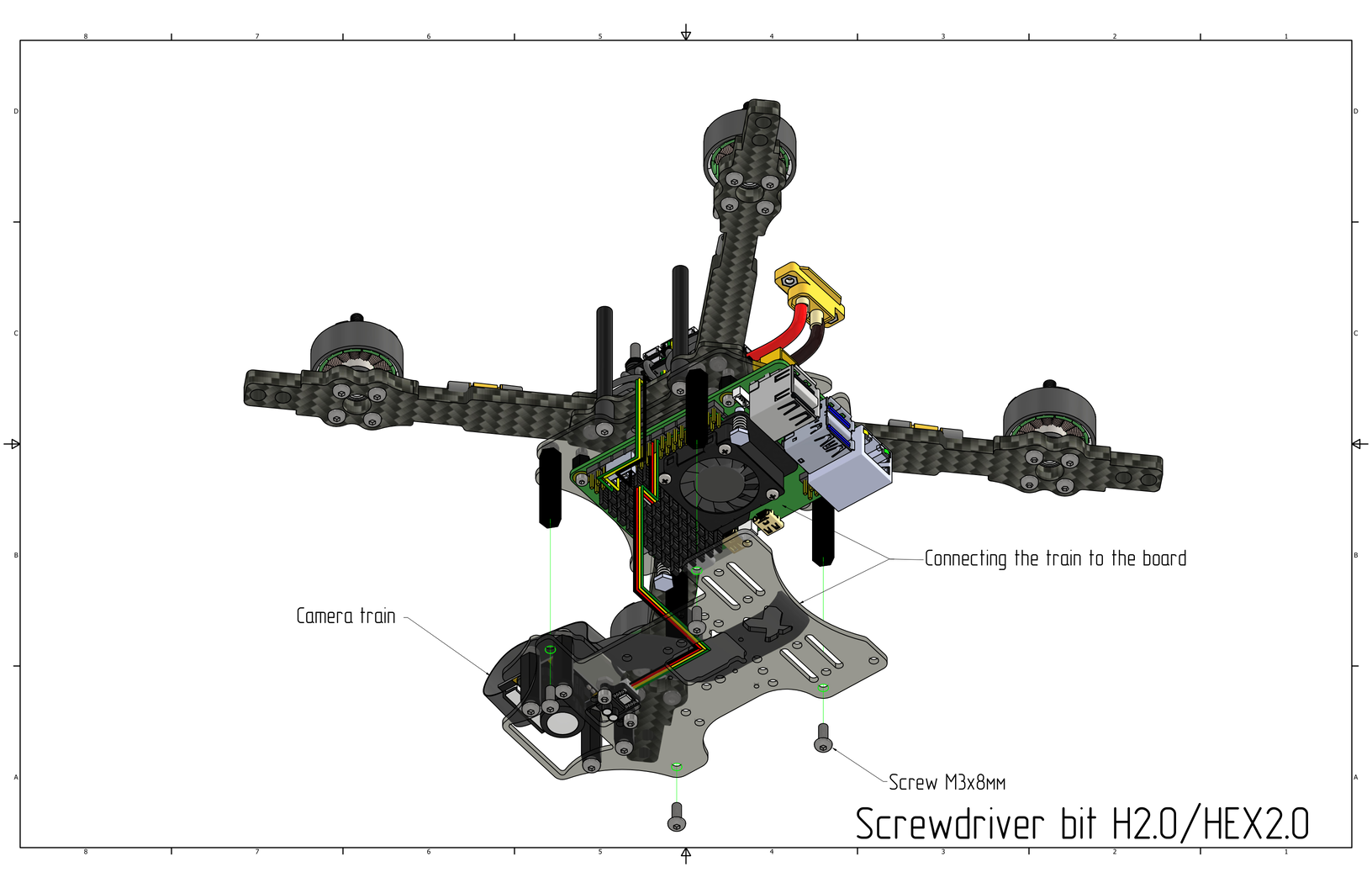

  16. Install the gripper plate on the quadcopter using M3x8 screws (Cell 8).

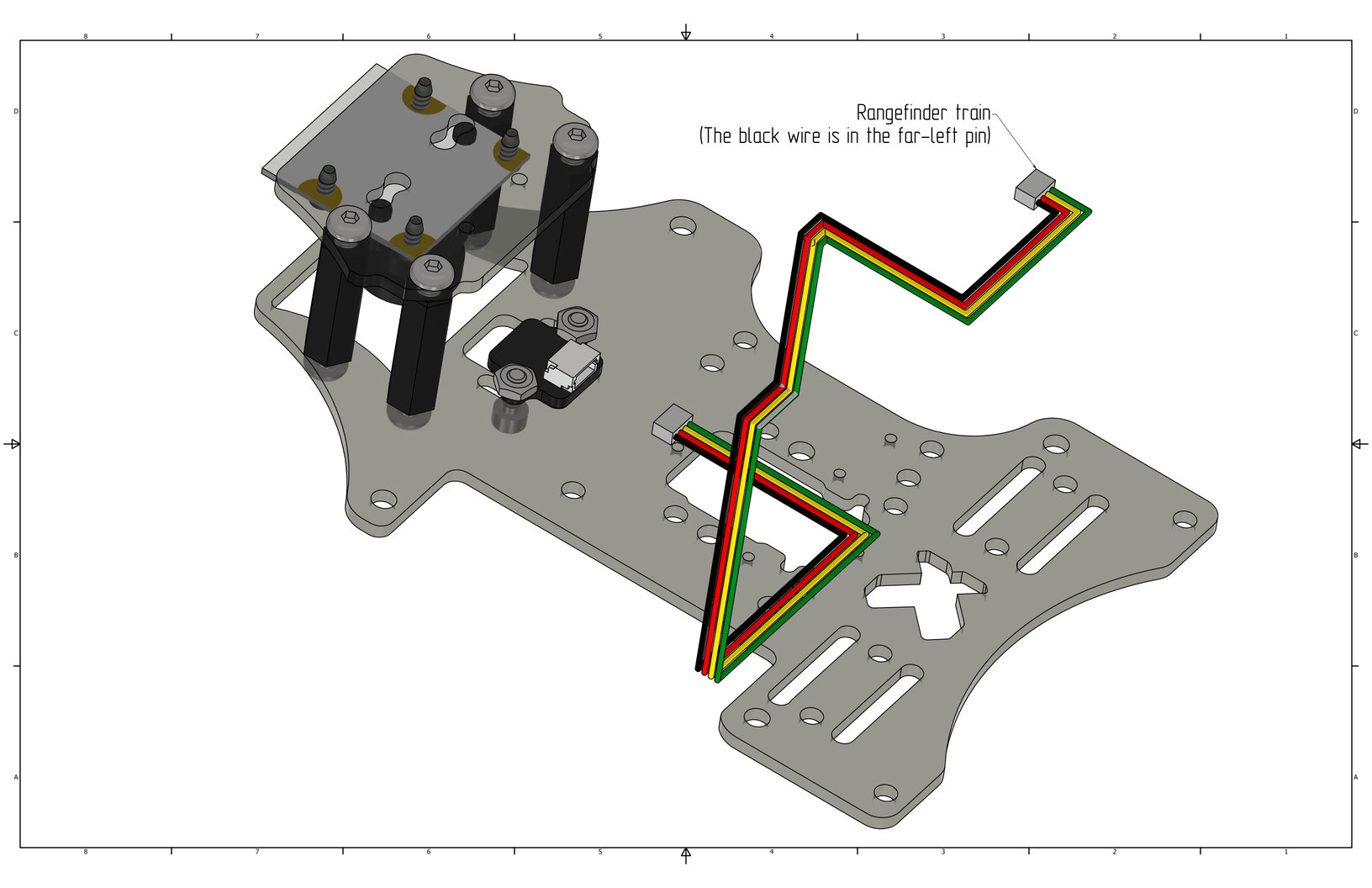

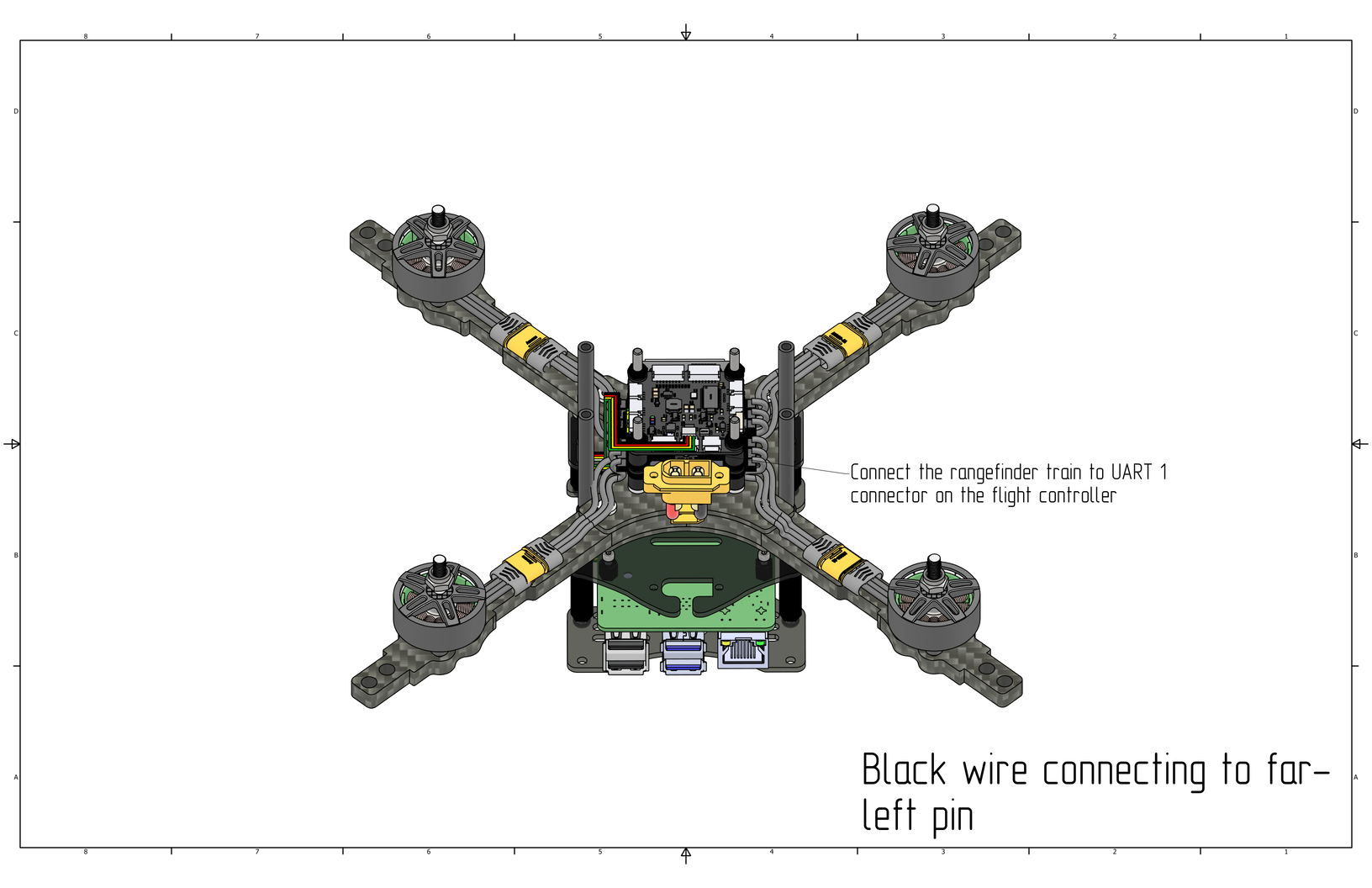

  17. Connect the rangefinder cable to the UART 1 port on the flight controller (black wire in the far left pin).

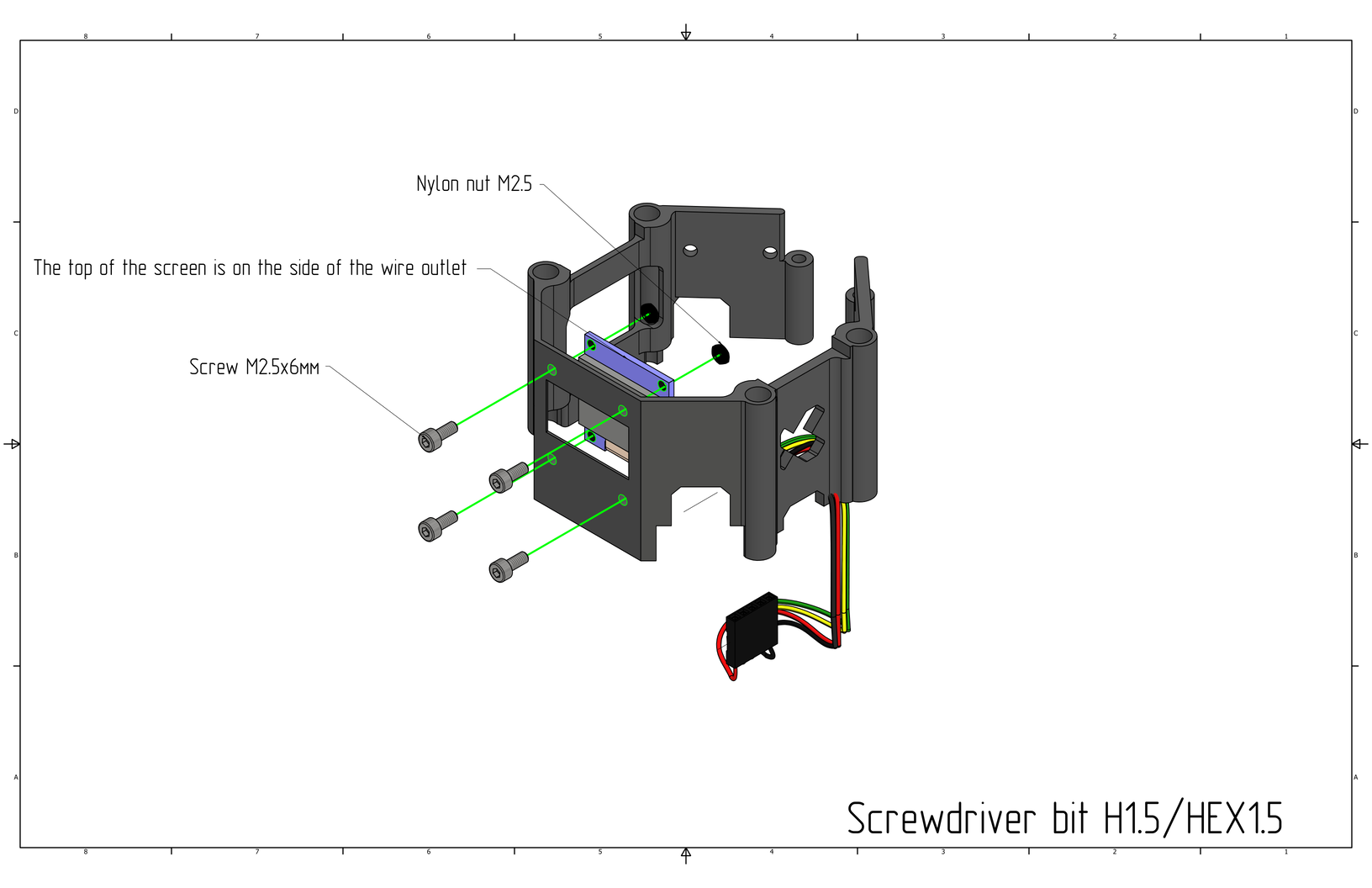

  18. Install the screen on the drone canopy using M2.5x6 screws (Cell 18) and M2.5 nylon nuts (Cell 4).

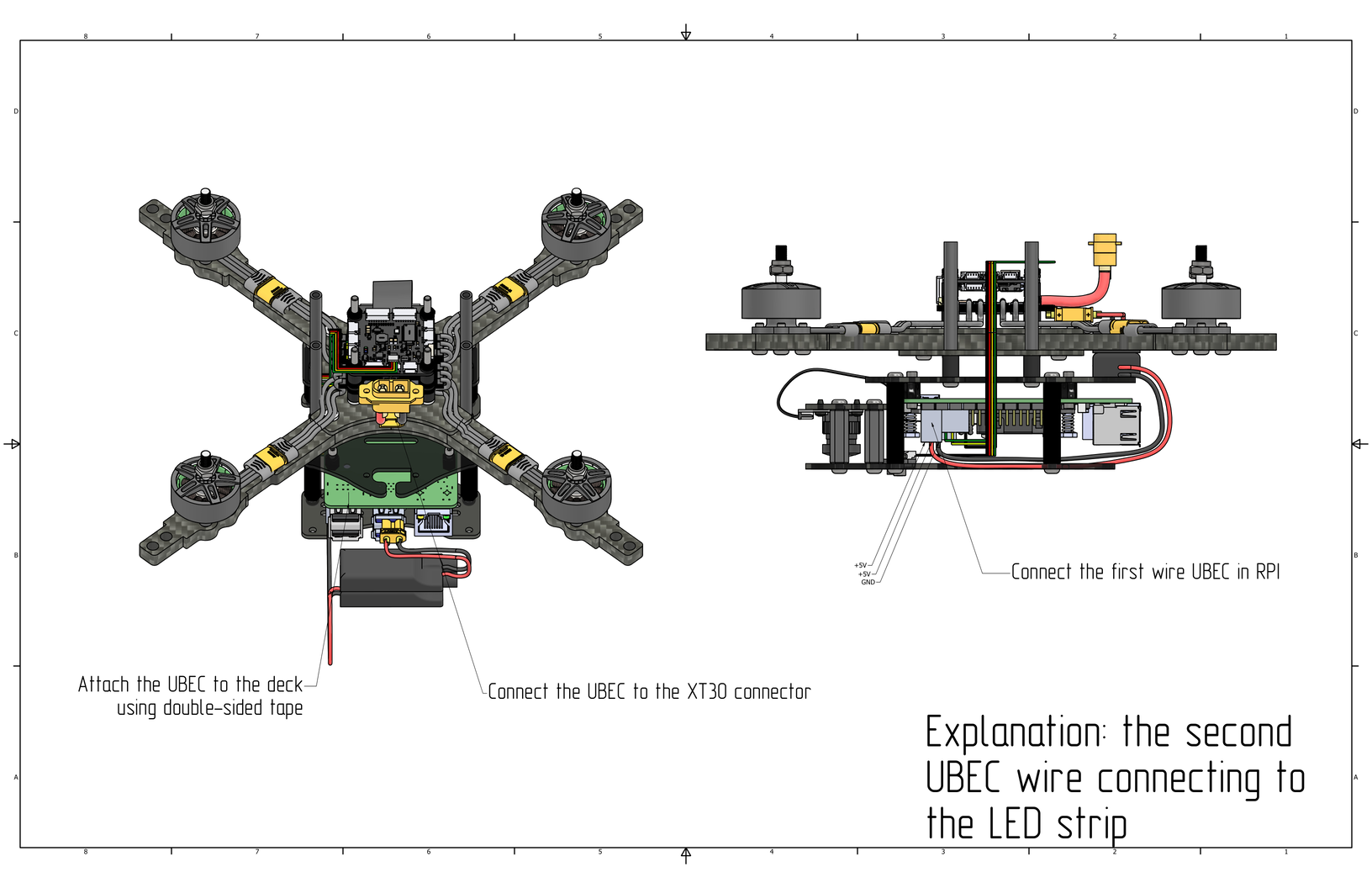

  19. Install the UBEC on the plate with the Raspberry Pi using double-sided tape. Connect the UBEC to the ESC via the XT30 connector. Connect the first UBEC wire to the Raspberry Pi as indicated in the picture (pins 4 and 6, see pinout above).

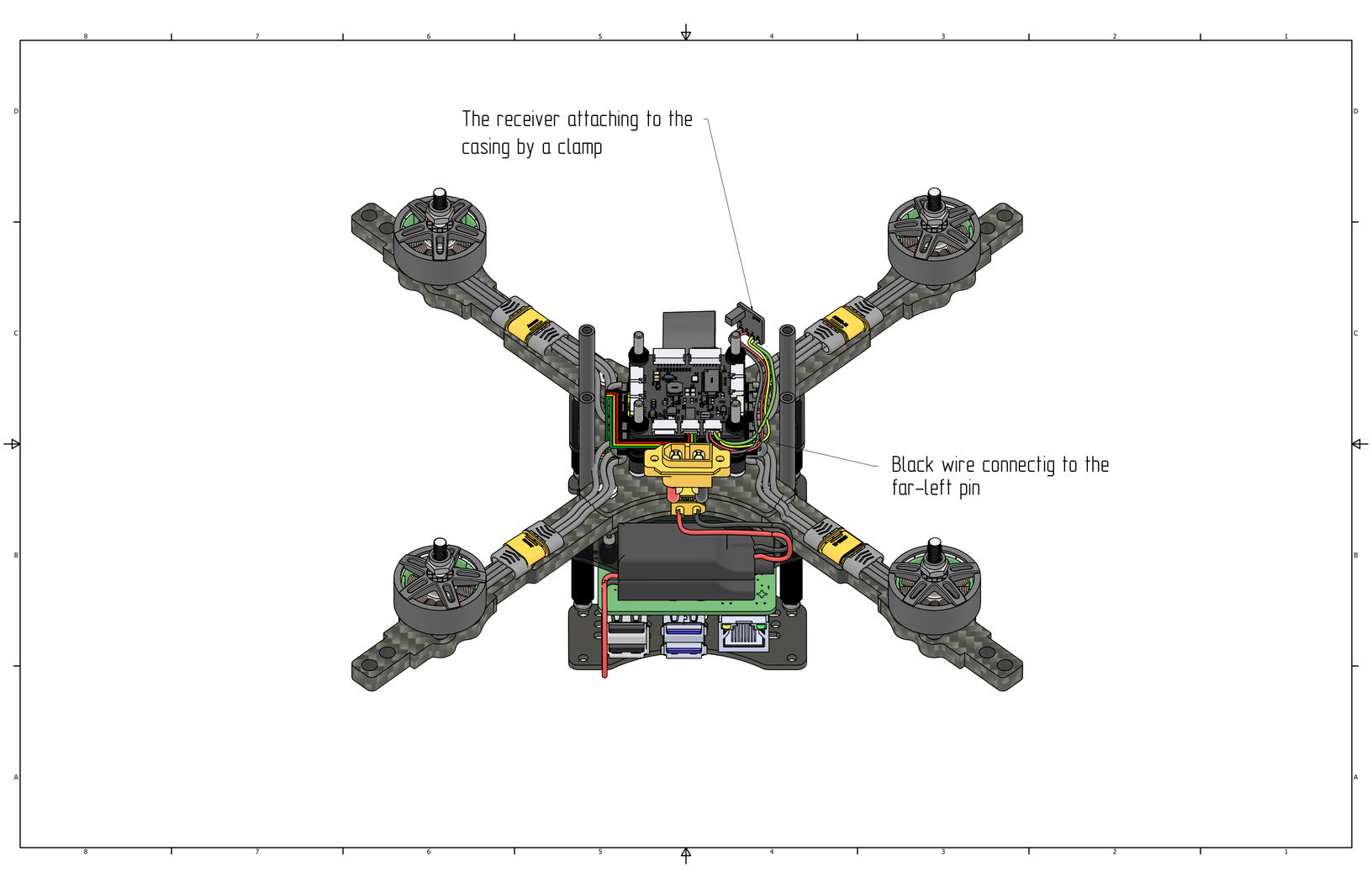

  20. Connect the receiver to the SBUS/CRSF (UART 6) port on the flight controller (black wire in the far left pin).

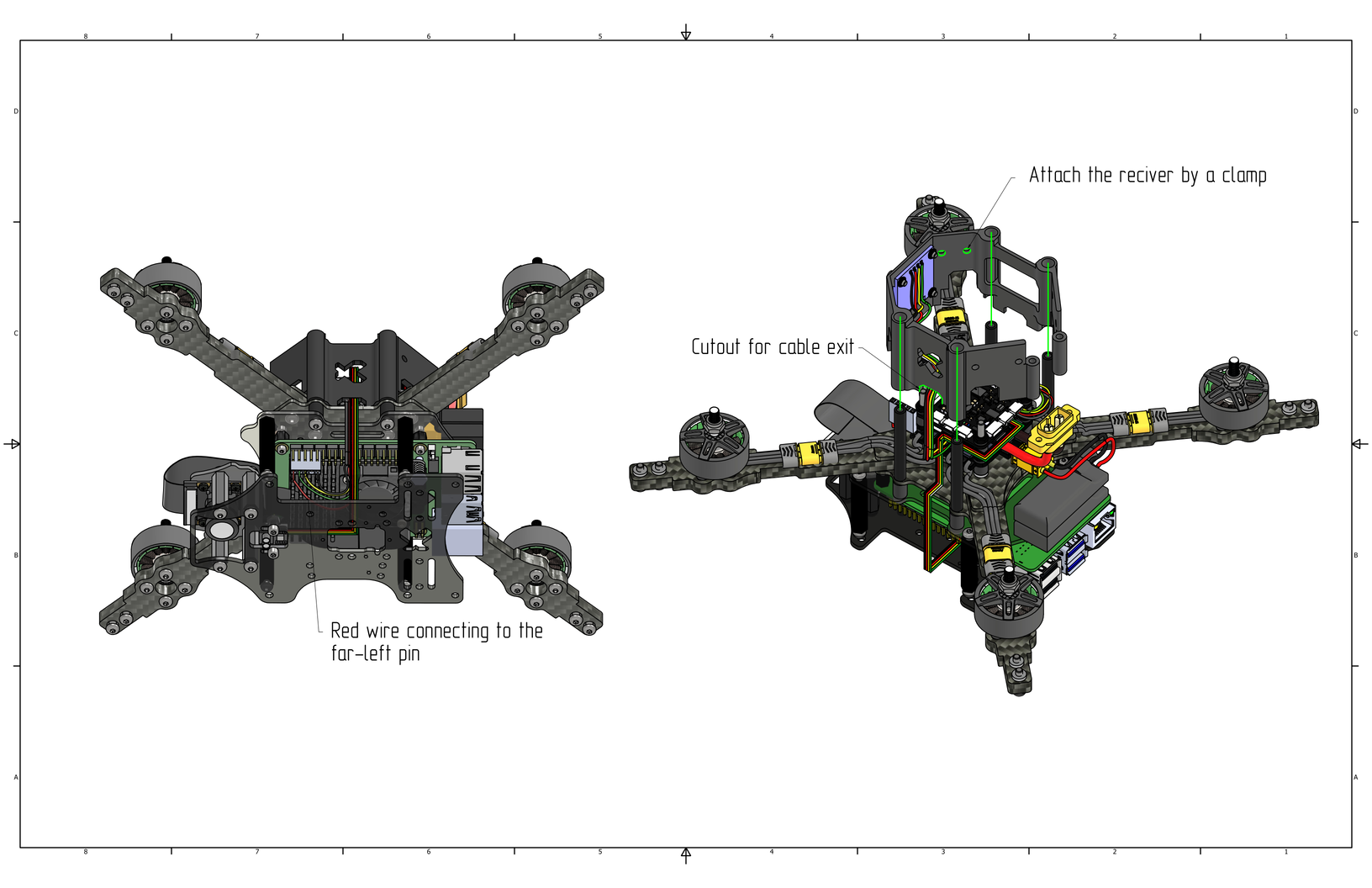

  21. Install the canopy over the aluminum standoffs and secure the receiver with a zip tie into the highlighted holes in the image. Route the wires into the wire cutout in the canopy. Connect the screen to the Raspberry Pi; the red wire connects to the far left pin of the inner row of the header relative to the SD card (red - pin 1, black - pin 9).

Installing Guards, Legs, and LED Strip

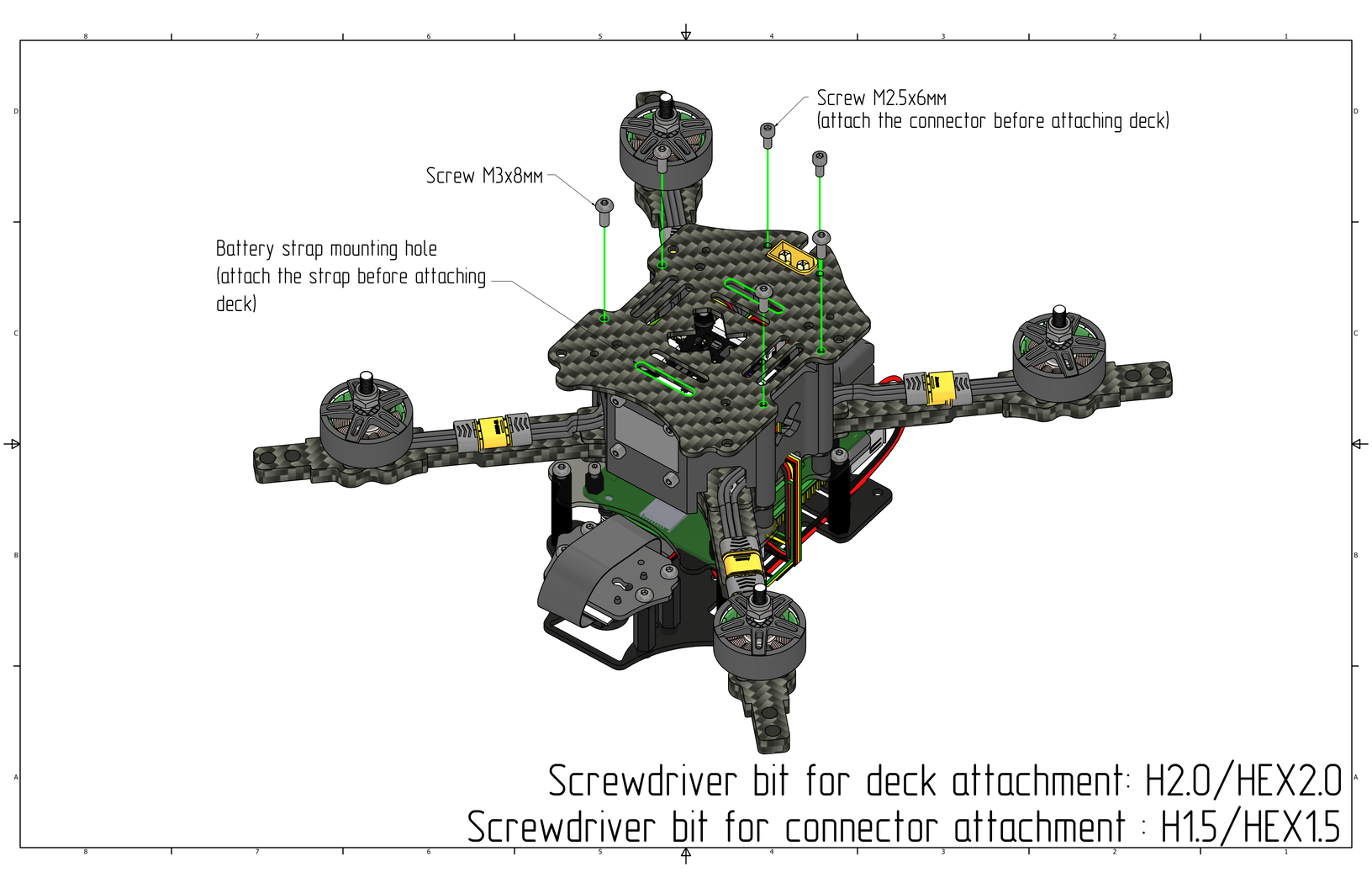

  1. Thread the strap into the top plate, then secure it to the aluminum standoffs using M3x8 screws (Cell 8), and secure the power connector using M2.5x6 screws (Cell 18). Assembly bit for the plate - H2.0/HEX2.0, for the connector - H1.5/HEX1.5.

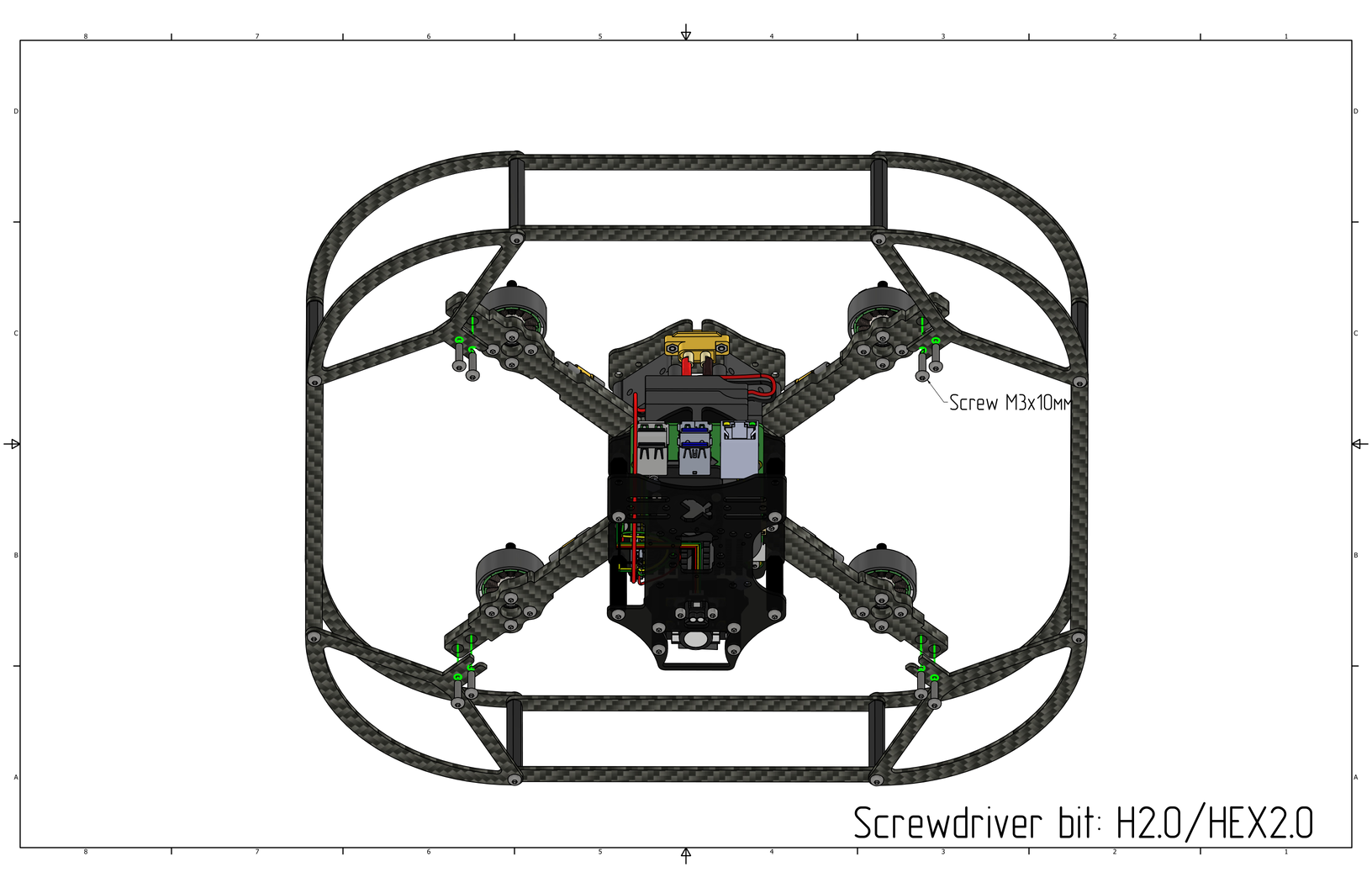

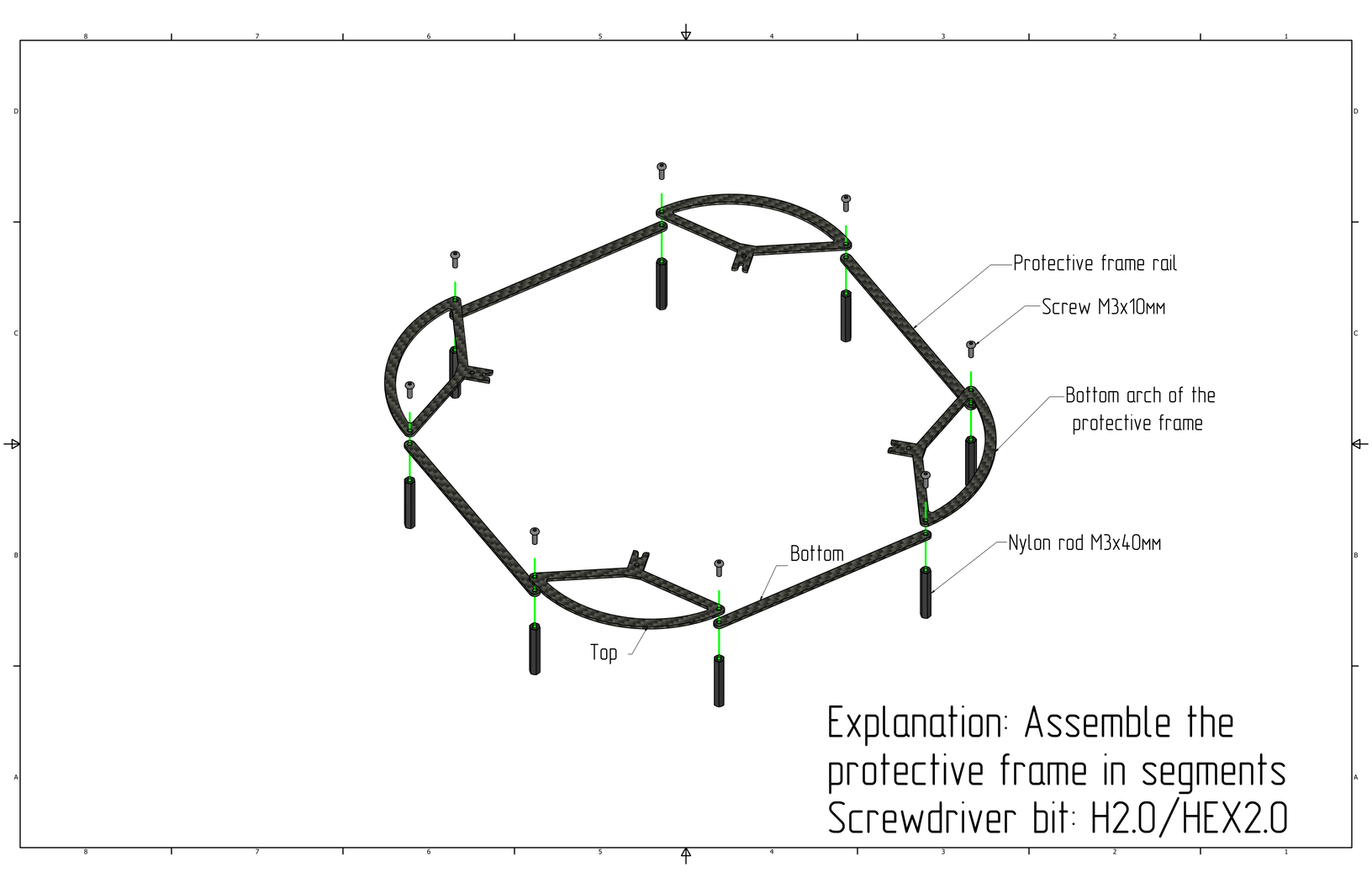

  2. Arrange the guard bridges in a square at the bottom, then place the bottom guard arcs on the corners, secure with M3x10 screws (Cell 13) from the top, and 40mm nylon standoffs (Cell 23) from the bottom.

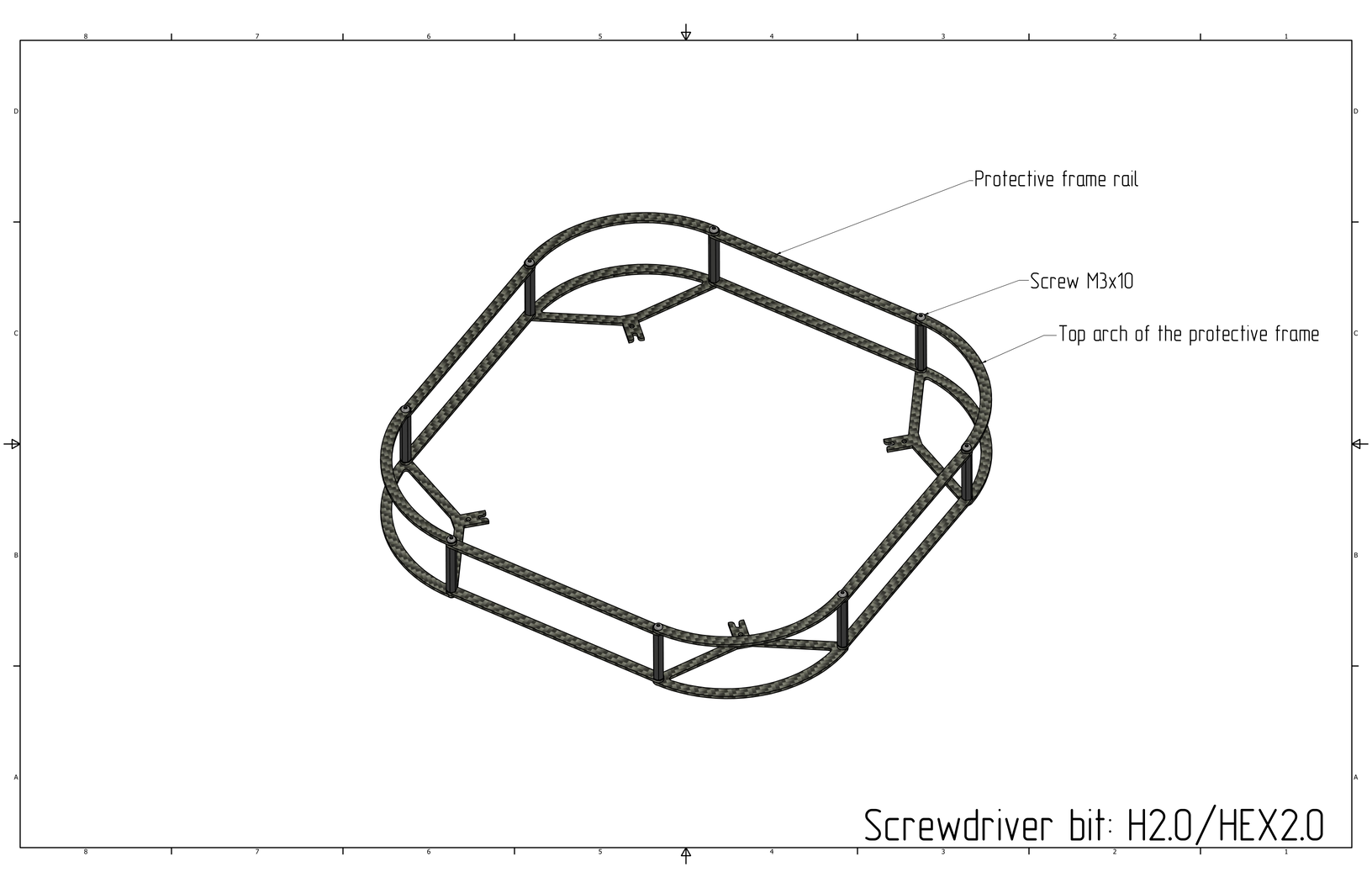

  3. Secure the top arcs and bridges in reverse order using M3x8 screws (Cell 8); the bridges should face inward and the arcs outward.

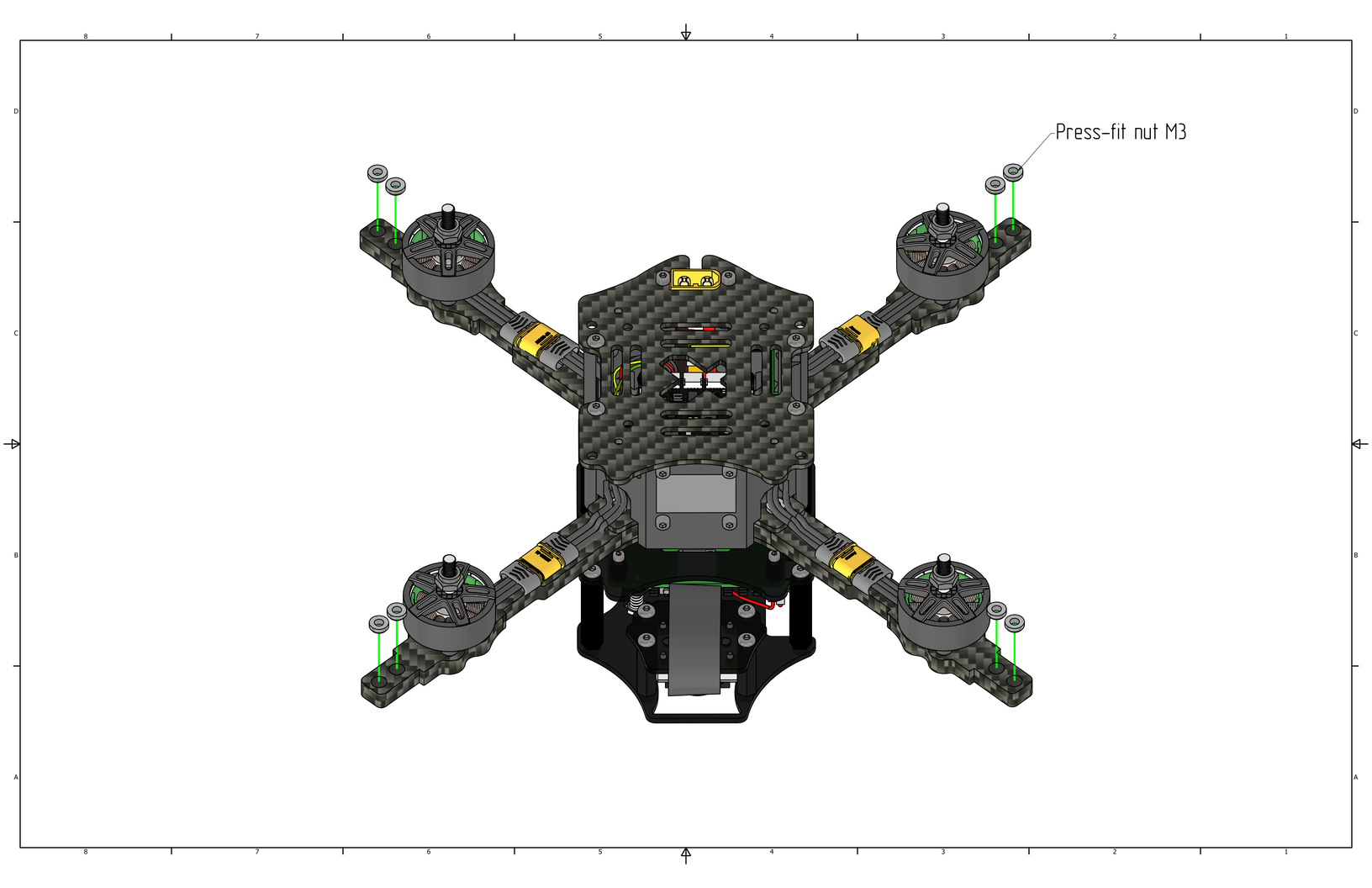

  4. Install and secure M3 press nuts (Cell 1) into the holes at the ends of the arms.

  5. Install the guard from the bottom side and secure it using M3x10 screws (Cell 13).

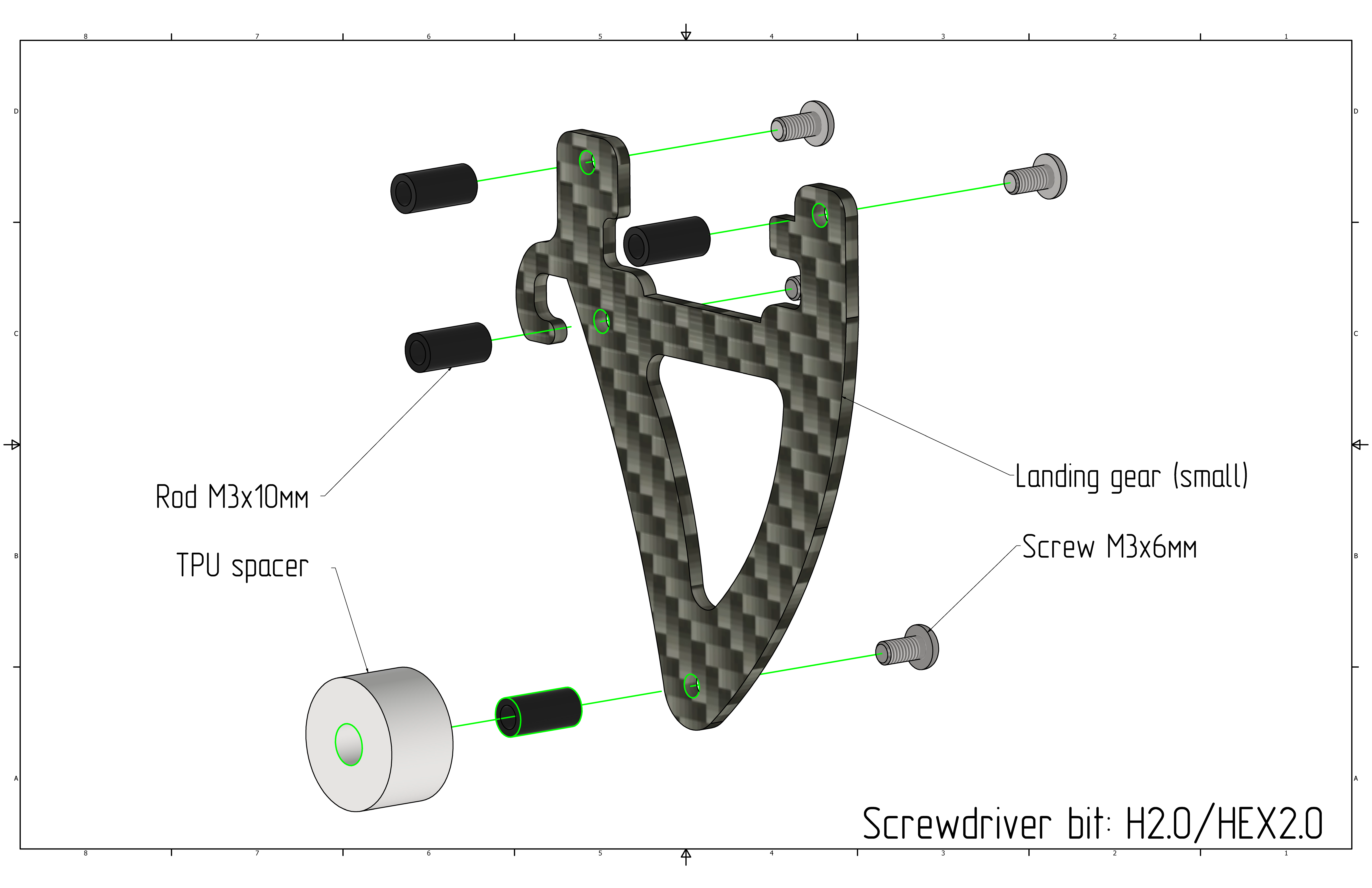

  6. Screw M3x6 screws (Cell 9) into all holes on one side of the small leg, and secure them with 10mm aluminum standoffs (Cell 14) on the other side. Place a TPU foot (Cell 25) over the standoff in the bottom hole.

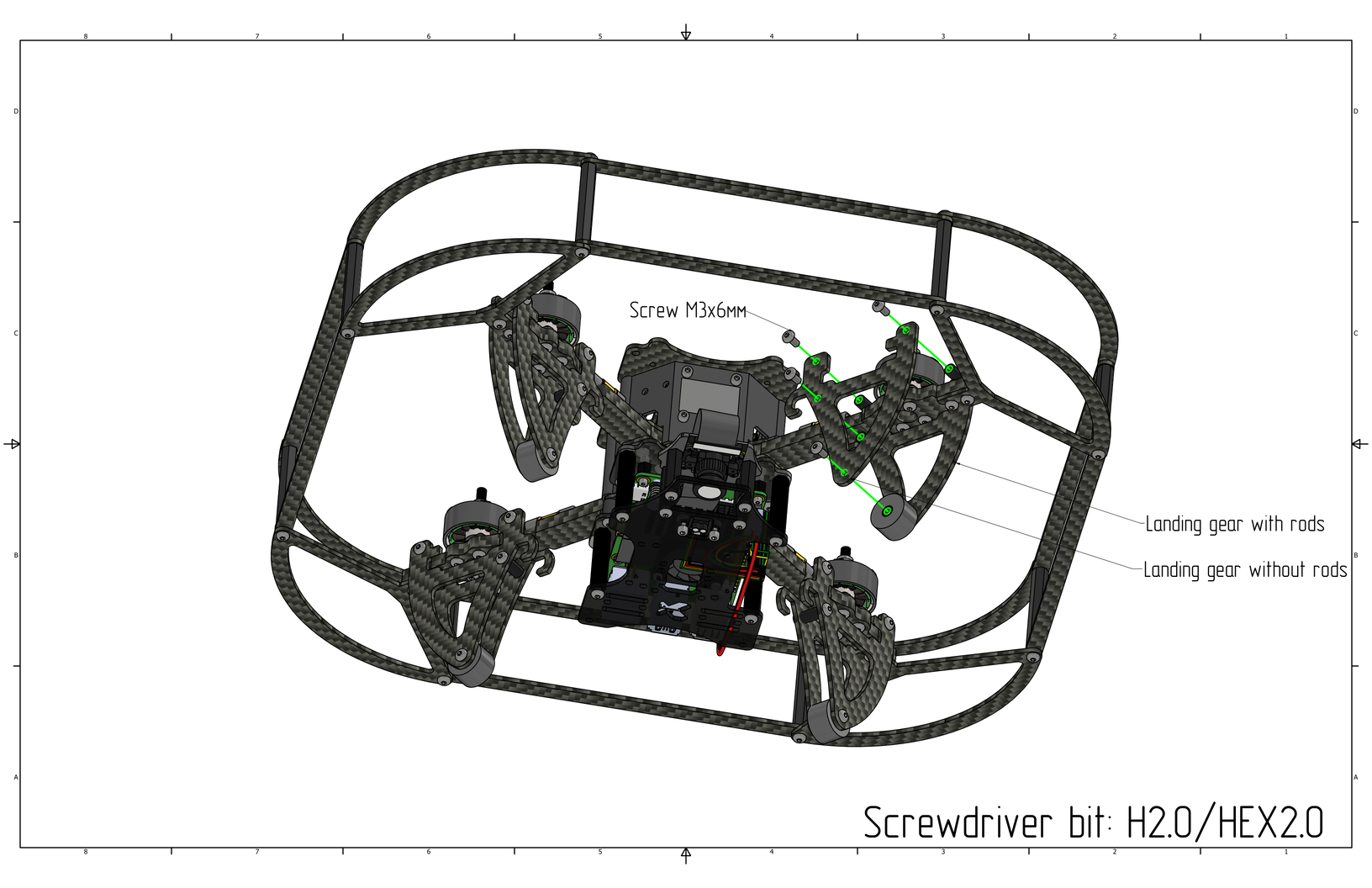

  7. Place the small leg on the arm as shown in the image and secure with M3x6 screws (Cell 9). Do the same for the other legs.

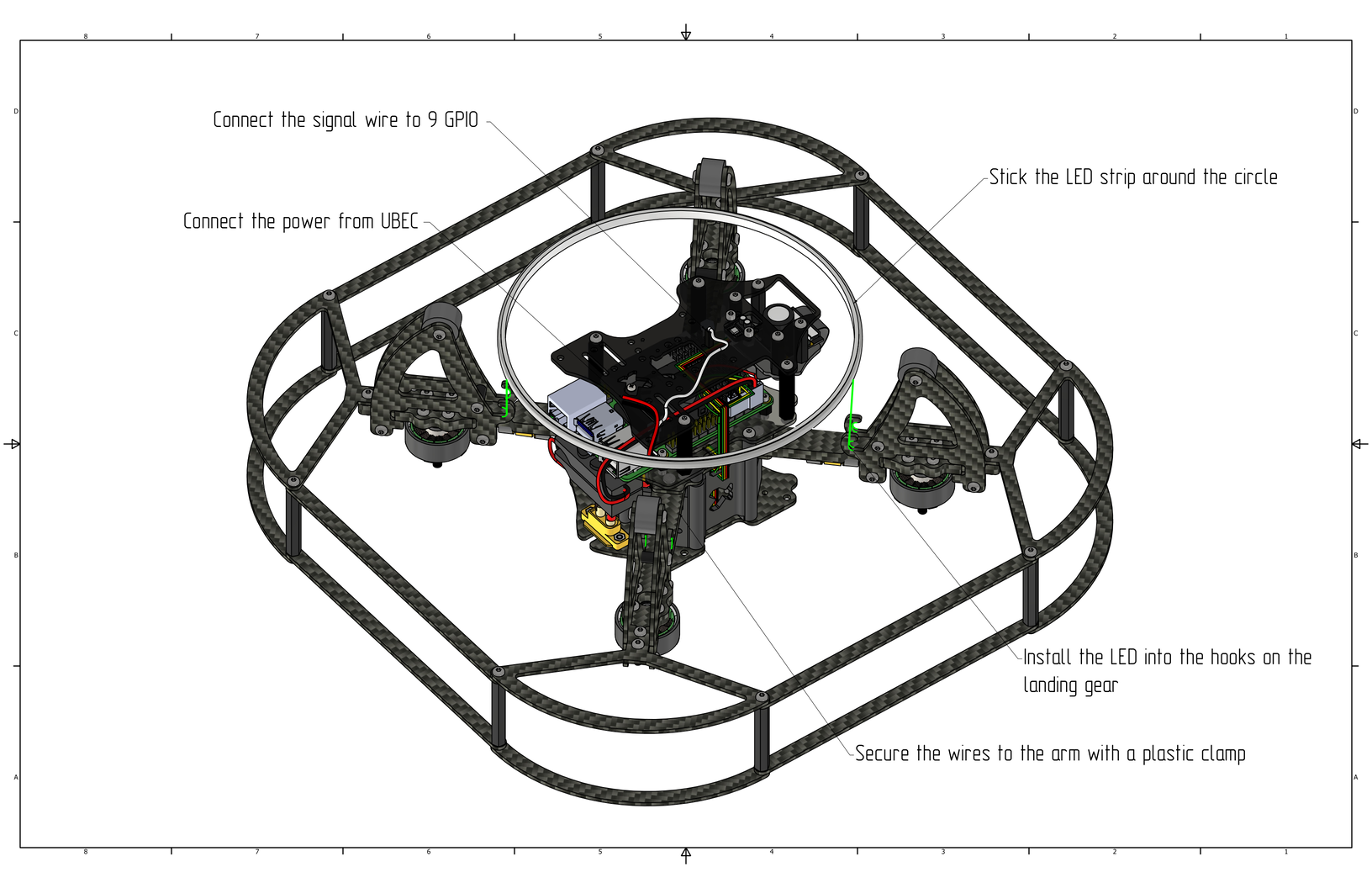

  8. Stick the LED strip onto the circumference, then install it into the hooks on the legs and secure the wires with a zip tie. Connect the power to the second free UBEC, and connect the signal wire to GPIO 9 (pin 21).

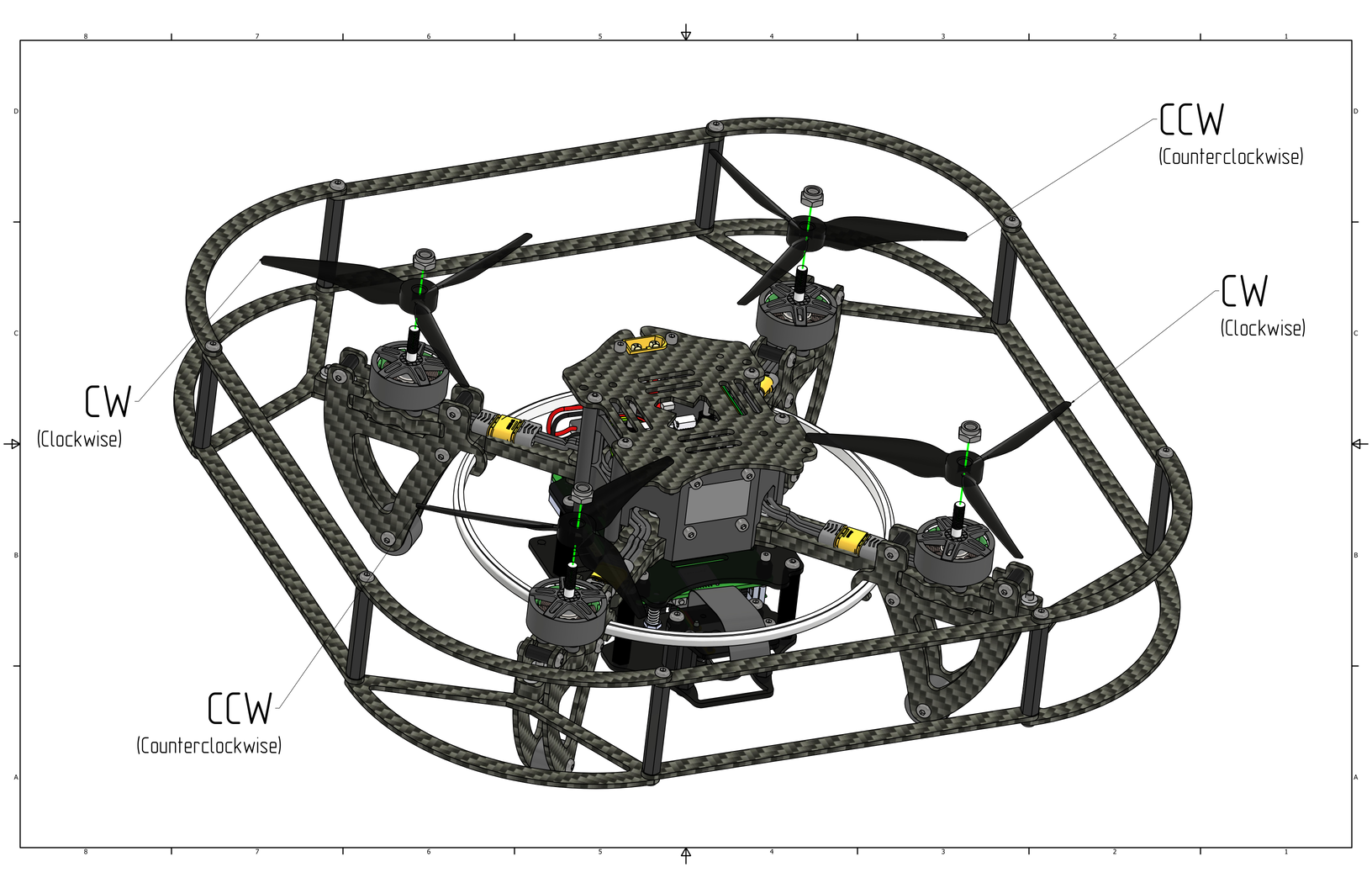

  9. Install the propellers according to the classic rotation direction, as shown in the image.

Check that no components remain unsecured. Before the first power-on, ensure that the propellers do not touch the canopy or wires.
